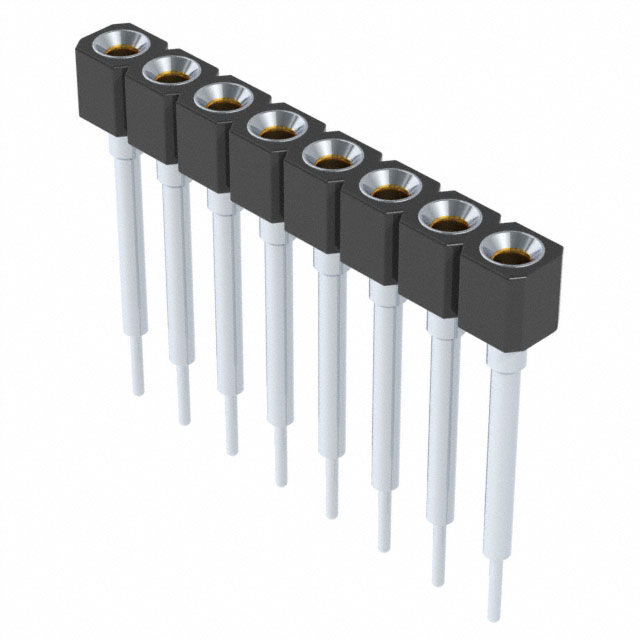

316-91-108-41-008000

316-91-108-41-008000 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Mill-Max Manufacturing Corp.. Its product description is CONN SOCKET 8POS 0.1 GOLD PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 316-91-108-41-008000

• Description：CONN SOCKET 8POS 0.1 GOLD PCB
• Series：316
• Mfr：Mill-Max Manufacturing Corp.
• Package：Bulk
• Connector Type：Elevated Socket
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：8
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：10.0µin (0.25µm)
• Insulation Color：Black
• Insulation Height：0.472" (12.00mm)
• Contact Length - Post：0.118" (3.00mm)
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin-Lead
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：3A
• Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for 316-91-108-41-008000
