337-023-520-612

Edgeboard Connectors Overview

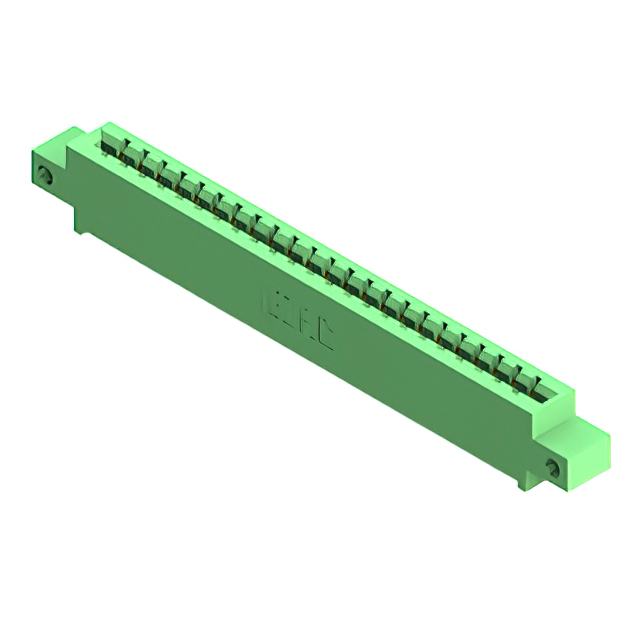

The EDAC Inc. 337-023-520-612 is a standard single-row card edge connector designed for vertical panel mounting. It features 23 female positions with a 3.96 mm (0.156 inch) contact spacing and 5.08 mm row spacing. The contacts are gold-plated copper alloy, rated for 3 A current. The housing is green thermoplastic polyester, accepting printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). Operating temperature ranges from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Vertical panel mount design for secure mechanical installation
• Gold-plated copper alloy contacts ensure reliable signal transmission
• High-profile insulator body accommodates standard board thicknesses

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment needing durable connections
• Agricultural technology applications in harsh environments

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact contact finish, housing color, and termination style. Ensure compatibility with target PCB thickness specifications before procurement. Confirm RoHS compliance status through the manufacturer's latest datasheet or certification documents.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical card edge interface is required for panel-mounted applications. Verify that the 3.96 mm pitch matches the target PCB layout. Confirm that the 3 A current rating and thermal range meet system operational requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 337 series of standard card edge connectors. The series provides various position counts and termination options for general-purpose interconnect needs across industrial and commercial sectors.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 337 Series Ordering Guide for direct substitutes with different position counts or termination styles. Cross-reference compatible parts within the same series for equivalent electrical and mechanical specifications.
