337-058-521-201

Edgeboard Connectors Overview

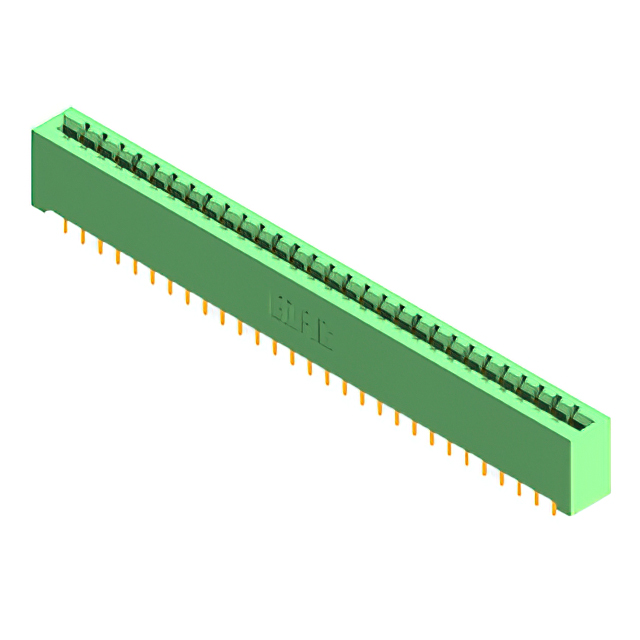

The EDAC Inc. 337-058-521-201 is a standard card edge connector socket designed for vertical through-hole mounting. It features 58 positions with a 3.96 mm pitch and accepts PCBs with a thickness of 1.57 mm. The contacts are gold-plated copper alloy, rated for 3 A current, and utilize wire wrap termination. Constructed with a thermoplastic polyester housing, it operates between -40°C and +105°C with an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board insertion
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides thermal stability
• Wire wrap termination supports robust circuit integration

Edgeboard Connectors Applications

• Vertical printed circuit board interconnection
• High-density signal routing in electronic assemblies
• Industrial control system module connections

Edgeboard Connectors Procurement Notes

Verify the specific pin count and orientation against design requirements before procurement. Confirm that the target PCB thickness aligns with the 1.57 mm specification to ensure proper mechanical fit. Check RoHS compliance status if environmental regulations apply to the final assembly. Ensure the wire wrap termination method matches available manufacturing capabilities.

Edgeboard Connectors Selection Notes

Select this component when a dual-row female connector is required for vertical mounting applications. The 3.96 mm pitch accommodates standard board layouts while providing ample spacing. Consider the 3 A current rating for power distribution needs within the circuit. Verify compatibility with existing wire wrap tools and processes during the selection phase.

Edgeboard Connectors Part Context

This part belongs to the EDAC 337 series of standard card edge connectors. The series offers various position counts and configurations for diverse electronic applications. Components in this family share common material properties and termination styles, ensuring consistent performance across different pin counts.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for verified substitute part numbers. Cross-reference specifications such as pitch, row count, and termination type to ensure functional equivalence.
