341-116-524-202

Edgeboard Connectors Overview

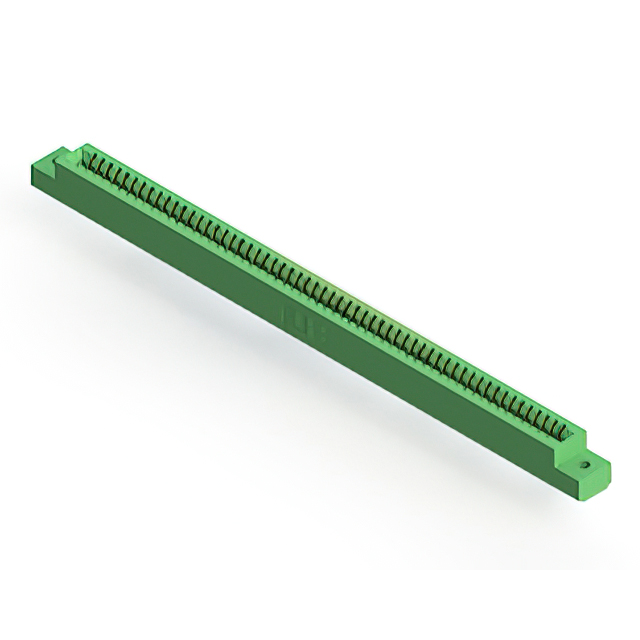

The EDAC Inc. 341-116-524-202 is a dual-edge female card edge connector featuring 116 positions with a 0.100-inch (2.54 mm) pitch. It utilizes half-beam contact technology and gold plating for reliable signal transmission. Designed for panel mount installation, the unit accommodates board thicknesses between 0.054 and 0.070 inches. The housing is constructed from green thermoplastic polyester, ensuring durability across an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration with half-beam contacts for secure mating
• Gold-plated terminals ensure corrosion resistance and low contact resistance
• Panel mount design with flange features for stable mechanical support

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffixes to confirm specific packaging and termination variations. Confirm that the required board thickness falls within the specified 0.054 to 0.070 inch range. Ensure compatibility with the target PCB layout regarding row count and pitch dimensions before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-density dual-edge connection is required for panel-mounted applications. The 116-position count suits complex signal routing needs. Verify that the operating environment remains within the -40°C to +105°C thermal limits. Consider the half-beam contact style for robust insertion and extraction cycles in industrial settings.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 341 series, which specializes in standard card edge connectors. The series offers various position counts and mounting styles to accommodate diverse electronic assembly requirements. The 341 series is widely recognized for its reliability in demanding environments, providing consistent performance for critical interconnect applications.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 341 series variants for alternative position counts or mounting configurations. Verify mechanical fit and electrical specifications against existing designs before substituting with similar components from different manufacturers.
