342-013-540-101

Edgeboard Connectors Overview

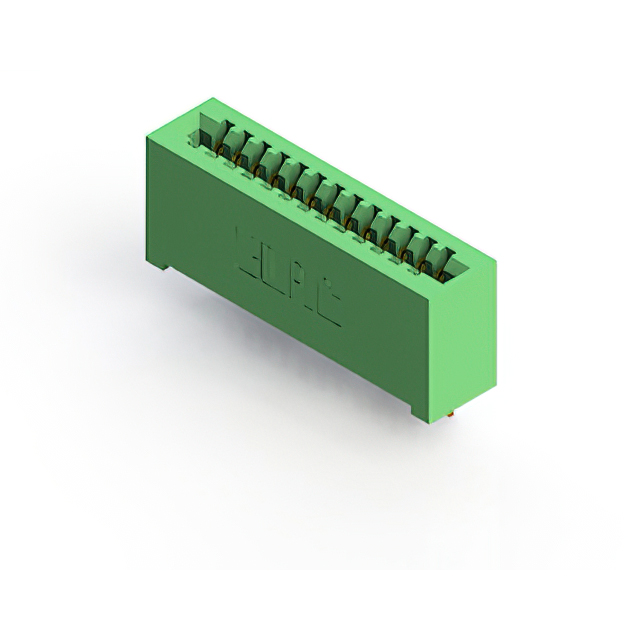

The EDAC Inc. 342-013-540-101 is a standard card edge connector socket from the 342 series, designed for single-edge board insertion. It features 13 positions with a 2.54 mm (0.100 inch) contact spacing and a 5.08 mm row spacing. The unit accepts printed circuit boards with a nominal thickness of 1.57 mm (.062 inch). Constructed with a copper alloy contact material and gold plating, it supports a current rating of 3 A. The housing utilizes thermoplastic polyester in a green finish, ensuring high insulation resistance.

Edgeboard Connectors Feature Summary

• Accepts .062 inch nominal thickness PCBs
• High profile insulator body design
• Gold plated copper alloy contacts

Edgeboard Connectors Applications

• Single-edge card edge interface connections
• Vertical through-hole mounting applications
• General electronic module interconnects

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, termination style, and plating specifications. Ensure the ordering part number matches the required board thickness and orientation. Cross-reference manufacturer datasheets for any recent product change notifications or environmental compliance updates prior to procurement.

Edgeboard Connectors Selection Notes

Select this component when a vertical, single-row card edge interface is required for thin PCBs. The 2.54 mm pitch suits standard digital logic modules. Confirm that the wire wrap termination type aligns with the assembly process. Verify that the 3 A current rating meets the signal load requirements for the intended application environment.

Edgeboard Connectors Part Context

This component belongs to the EDAC 342 series of standard card edge connectors. The series offers various position counts and termination options. The 342-013-540-101 specifically denotes a 13-position variant with gold-plated contacts and a thermoplastic polyester housing, providing reliable mechanical retention for single-edge circuit boards.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include variations such as 342-013-540-112, which shares similar physical dimensions but may differ in specific manufacturing revisions or minor packaging attributes. Always verify electrical continuity and mechanical fit before swapping.
