345-006-559-104

Edgeboard Connectors Overview

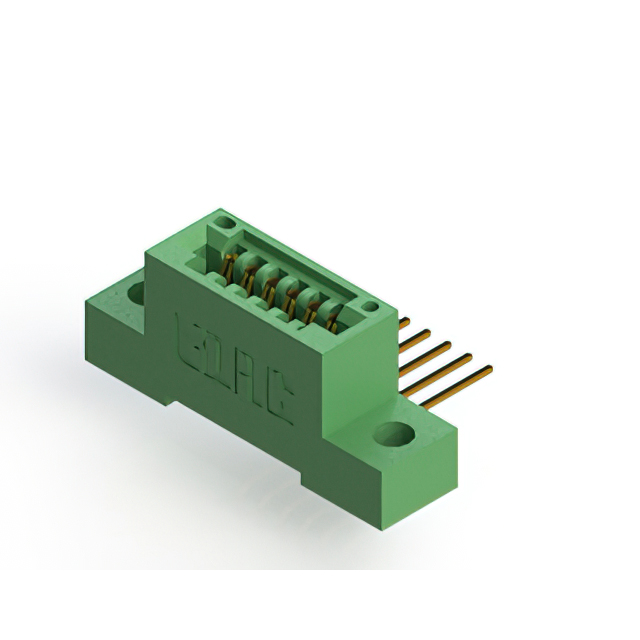

The EDAC Inc. 345-006-559-104 is a single-row card edge connector designed for through-hole mounting. It features 6 positions with a 0.100" (2.54mm) pitch and accepts board thicknesses of 0.054" to 0.070" (1.37mm to 1.78mm). The contacts are copper alloy with gold plating, rated at 3A. Operating temperature ranges from -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Single-sided female contact configuration for standard card edge applications
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Through-hole termination method provides secure mechanical attachment

Edgeboard Connectors Applications

• Standard card edge interconnections
• Edgeboard connectors in industrial equipment
• General-purpose electronic assemblies requiring single-row interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating specifications and flange configurations. Ensure compatibility with target PCB thickness limits. Confirm RoHS compliance status for the specific production batch prior to integration into final products.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with 6 positions is required. Verify that the mating card thickness falls within the specified range. Consider the right-angle mounting style if space constraints dictate vertical orientation relative to the host board.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series, which offers various pin counts and configurations. The series supports both single and double-sided options with different termination styles. This specific model represents a low-pin-count variant suitable for simpler signal or power distribution tasks.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 345 series parts with matching pin counts and pitch. Cross-reference with manufacturer datasheets for equivalent single-row connectors from other suppliers ensuring identical electrical ratings and mechanical dimensions.
