345-032-521-404

$5.16

Description：CONN EDGE SINGLE FML 32POS 0.100
Series：345
Mfr：EDAC Inc.
Package：Box

SKU:f2c73b086cb7 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

345-032-521-404 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 32POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 345-032-521-404

Description：CONN EDGE SINGLE FML 32POS 0.100
Series：345
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：32
Number of Positions：32
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 345-032-521-404

345-032-521-404

Edgeboard Connectors Overview

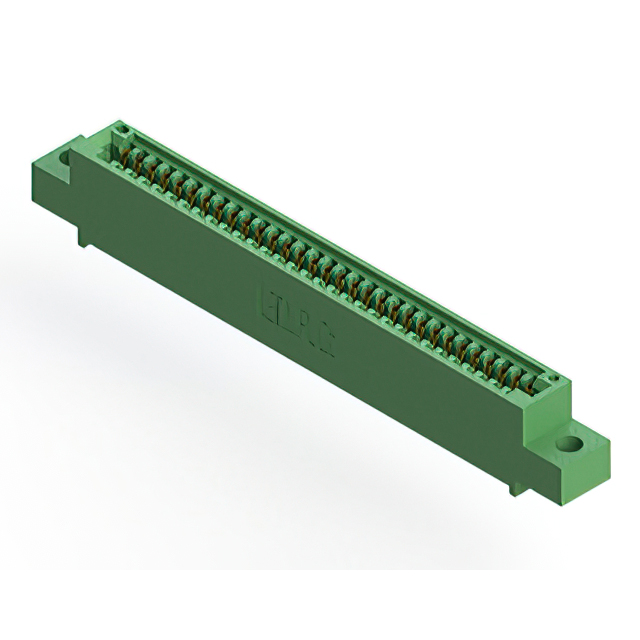

The EDAC Inc. 345-032-521-404 is a single-row, female card edge connector designed for through-hole mounting. It features 32 positions with a 0.100-inch (2.54mm) pitch and utilizes gold-plated contacts. The housing is green thermoplastic polyester, rated for operation between -40°C and 105°C. It accepts board thicknesses of 0.054 to 0.070 inches and includes flanges with top-mounting openings.

Edgeboard Connectors Feature Summary

Single-edge female contact configuration for reliable signal transmission
Gold-plated spring-loaded cantilever contacts ensure stable connection
Thermoplastic polyester insulation provides thermal stability
Through-hole termination supports secure PCB integration

Edgeboard Connectors Applications

Industrial control system interface connections
Medical device internal circuit board interconnects
Agricultural technology equipment signal routing
General-purpose electronic module expansion slots

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and flange specifications. Ensure compatibility with target PCB stack-up dimensions before procurement. Confirm RoHS compliance status matches project requirements. Cross-reference datasheet revisions to validate current manufacturing parameters.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 32-position interface is required for vertical board insertion. Verify that the target PCB thickness falls within the specified 0.054 to 0.070 inch range. Consider the operating temperature limits and environmental exposure conditions. Evaluate mechanical retention needs regarding the provided flange design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series of standard card edge connectors. The series offers various position counts and termination styles. It is engineered for robust performance in demanding environments. The model number encodes specific physical and electrical characteristics defined by the manufacturer.
