345-110-520-808

Edgeboard Connectors Overview

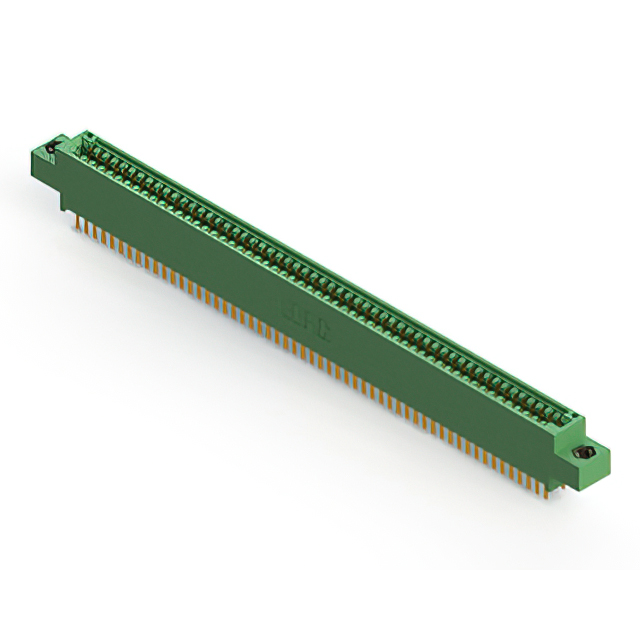

The EDAC Inc. 345-110-520-808 is a standard card edge connector featuring 52 positions with a 0.100 inch (2.54 mm) pitch. Designed for through-hole vertical mounting, this female connector utilizes gold-plated contacts on dual edges to ensure reliable signal transmission. The unit is constructed with green insulators and includes flanges for secure installation. It supports board thicknesses within specified mechanical tolerances, providing a robust interconnection solution for high-density electronic assemblies requiring precise alignment and durable contact performance.

Edgeboard Connectors Feature Summary

• Dual-edge gold-plated contact configuration for enhanced conductivity
• Vertical through-hole mounting style with integrated flanges
• Green high-temperature insulator construction
• Standard 0.100 inch pitch spacing for compatibility

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• General-purpose electronic circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official catalog to confirm exact pin count, plating type, and mounting variations. Cross-reference the component number with current distributor listings to ensure availability in your region. Confirm that the required board thickness falls within the connector's mechanical specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a vertical, dual-edge connection is required for PCBs with a 2.54 mm pitch. Ensure the application environment does not exceed the thermal limits of the green insulator material. Verify that the target printed circuit board thickness aligns with the connector's design parameters to guarantee proper seating and electrical continuity during operation.

Edgeboard Connectors Part Context

This component belongs to the EDAC 345 series, which provides a comprehensive range of card edge connectors. The series offers various position counts and termination options to support diverse electronic design requirements. These connectors are engineered for durability and consistent performance across industrial and commercial applications.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 345 Series Ordering Guide for direct substitutes with differing pin counts or termination styles. Verify mechanical footprint compatibility before swapping with other manufacturers' equivalents to prevent assembly issues.
