374319-E

Headers, Male Pins Overview

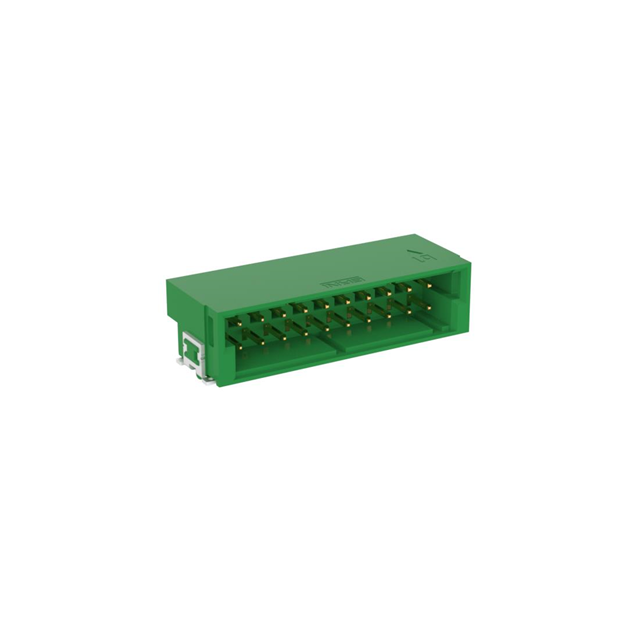

The TE Connectivity / ERNI 374319-E is a MaxiBridge series PCB mount header designed for surface mount technology. It features a right-angle configuration with 20 positions arranged in a dual-row layout. The component utilizes a 2.54 mm (0.1 inch) centerline pitch and employs gold-plated male pin contacts to ensure reliable signal and power transmission. Constructed as a fully shrouded unit, it provides mechanical alignment and protection during assembly. The housing material supports an operational temperature range from -55°C to +150°C, suitable for high-reliability electronic applications requiring robust board-to-board interconnects.

Headers, Male Pins Feature Summary

• Fully shrouded design ensures precise mating alignment and protects contact pins
• Right-angle surface mount termination facilitates compact circuit board layouts
• Gold-plated male pin contacts provide durable electrical conductivity
• Dual-row configuration maximizes connection density within a standard pitch

Headers, Male Pins Applications

• High-density board-to-board interconnections
• Industrial control system backplanes
• Automotive electronics modules
• Telecommunications equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact packaging and plating specifications. Ensure compatibility with automated SMT placement equipment regarding the right-angle profile. Cross-reference the 20-position count and 2.54 mm pitch requirements with the target PCB footprint design prior to procurement to prevent mechanical mismatch.

Headers, Male Pins Selection Notes

Select this component when a right-angle surface mount header is required for high-density signal routing. The 2.54 mm pitch accommodates standard wire harnesses and mating connectors within the MaxiBridge ecosystem. Consider the shrouded housing for applications demanding enhanced mechanical stability during vibration or thermal cycling. Verify that the operating temperature range meets the environmental constraints of the final assembly.

Headers, Male Pins Part Context

This part belongs to the MaxiBridge family of connectors by TE Connectivity / ERNI, specializing in mixed-signal connectivity solutions. The series offers various configurations including vertical and right-angle headers with different position counts. The 374319-E specifically addresses the need for robust, surface-mountable interconnects in space-constrained environments where reliable signal integrity is critical.

Headers, Male Pins Replacement Considerations

Direct substitutes include other MaxiBridge series headers with identical 20-position, 2.54 mm pitch, and right-angle SMT specifications. Verify that any alternative maintains the same shrouded housing style and contact plating requirements to ensure mechanical and electrical compatibility.
