387-012-524-604

Edgeboard Connectors Overview

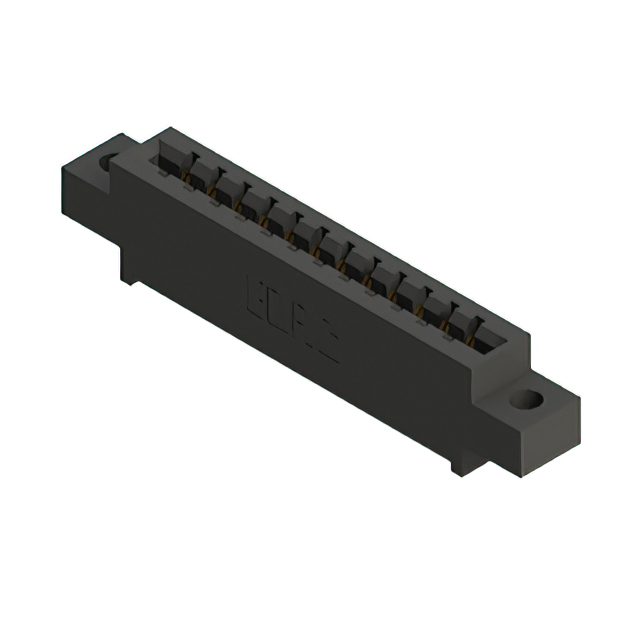

The EDAC Inc. 387-012-524-604 is a single-row card edge connector designed for through-hole mounting. It features 12 female contacts with a 0.156-inch (3.96mm) pitch. The connector utilizes gold-plated copper alloy cantilever contacts and a black thermoplastic polyester insulator. It supports board thicknesses ranging from 0.054 to 0.070 inches (1.37mm to 1.78mm). The unit operates within a temperature range of -40°C to +105°C and includes flanges with top-mounting openings.

Edgeboard Connectors Feature Summary

• Single-edge female contact configuration with cantilever spring design
• Gold-plated copper alloy terminals for reliable signal transmission
• Thermoplastic polyester housing with integrated mounting flanges
• Through-hole termination compatible with standard PCB fabrication

Edgeboard Connectors Applications

• Industrial control system interface connections
• Telecommunications equipment backplane interconnects
• Consumer electronics module insertion points
• Automotive electronic control unit peripheral interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the official EDAC 387 Series Ordering Guide to ensure correct flange type and contact plating specifications. Confirm that the target printed circuit board thickness falls within the specified 1.37mm to 1.78mm range for proper mechanical engagement. Check RoHS compliance status if required by project regulations, as variations may exist across production batches.

Edgeboard Connectors Selection Notes

Select this component when a single-row, non-specified card edge connection is required with a 3.96mm spacing. Ensure the application environment remains within the -40°C to +105°C operational limit. Consider the through-hole mounting style and verify available panel space for the flange dimensions. Compare against other series if different contact counts or dual-edge configurations are needed.

Edgeboard Connectors Part Context

This part belongs to the EDAC 387 Series, which provides standardized card edge connectors for various industrial and commercial applications. The series offers multiple position counts and contact configurations to support diverse board integration needs. Components in this line are characterized by robust mechanical retention and consistent electrical performance across the operating temperature spectrum.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 387 series variants with matching 12-position counts and single-edge female configurations. Verify identical pitch, board thickness compatibility, and mounting style before substitution. Cross-reference with manufacturer cross-index guides for equivalent parts from other suppliers offering similar form-factor specifications.
