392-008-558-107

Edgeboard Connectors Overview

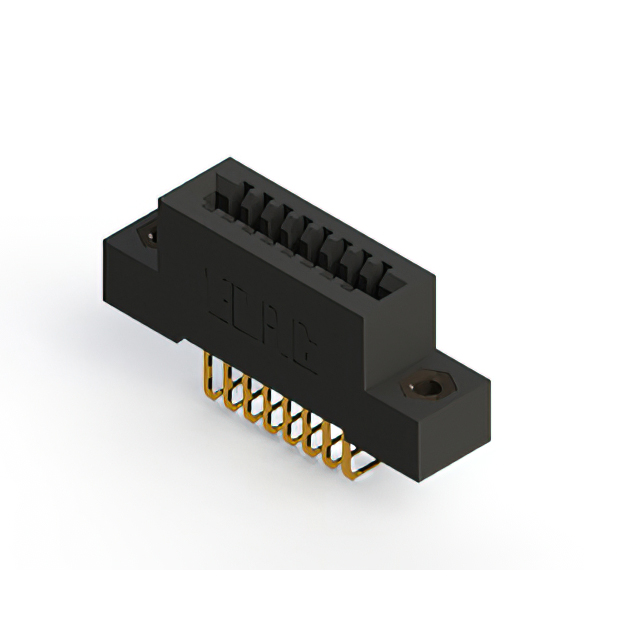

The EDAC Inc. 392-008-558-107 is a standard card edge connector from the 392 series, designed for single female edgeboard applications. It features eight positions with a 0.100 inch (2.54 mm) contact spacing and utilizes gold-plated copper alloy contacts. The unit employs a thermoplastic polyester insulator in black and supports a current rating of 3 A. Designed for panel mounting at a right angle, it uses solder pin termination. The component operates within a temperature range of -40°C to +105°C and maintains an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Single row female configuration with gold-plated copper alloy contacts
• Thermoplastic polyester housing providing robust electrical insulation
• Right-angle panel mounting design for secure board integration
• Solder pin termination ensuring stable mechanical and electrical connections

Edgeboard Connectors Applications

• Industrial control systems requiring reliable signal transmission
• Telecommunications equipment utilizing standard card edge interfaces
• Automotive electronics demanding durable connection solutions
• Test and measurement instrumentation boards

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required eight-position configuration and right-angle orientation before procurement. Confirm compatibility with the target PCB thickness and ensure the solder pin termination method aligns with the assembly process. Cross-reference the operating temperature range against environmental conditions to guarantee long-term reliability in the intended application environment.

Edgeboard Connectors Selection Notes

Select this connector when a single-row, right-angle interface is required for compact panel-mounted designs. The 0.100 inch pitch accommodates standard card edge layouts, while the 3 A current rating suits moderate power distribution needs. Consider the thermoplastic polyester material for general-purpose durability and verify that the gold plating meets corrosion resistance requirements for the specific operational environment.

Edgeboard Connectors Part Context

This component belongs to the EDAC 392 series, which specializes in standard card edge connectors for edgeboard applications. The series offers various position counts and mounting styles to support diverse electronic packaging requirements. The 392-008-558-107 specifically addresses needs for low-profile, right-angle connections in industrial and commercial electronic assemblies.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 392 series connectors with matching eight-position counts and right-angle orientations. Verify that alternative parts maintain identical 0.100 inch pitch and solder pin termination specifications to ensure mechanical fit and electrical continuity without redesigning the host circuit board.
