39301162

Headers, Male Pins Overview

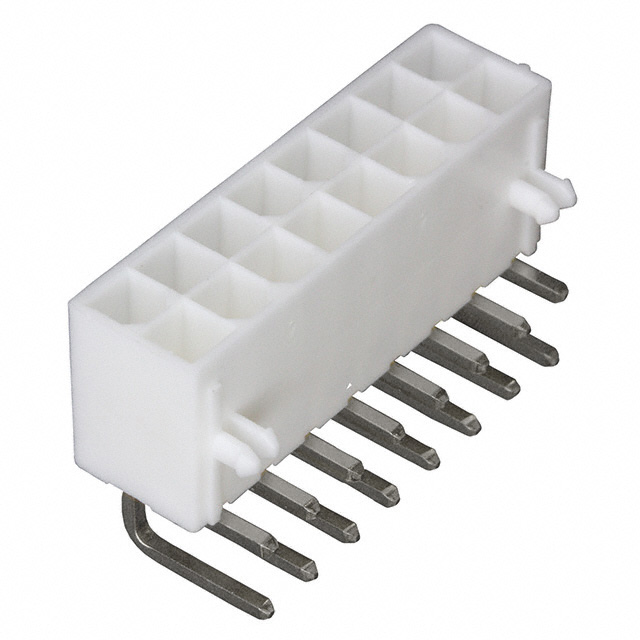

The Molex 0039301162 is a Mini-Fit Jr. series header connector designed for board-to-cable or wire applications. It features a right-angle, through-hole termination style with a 4.20mm (0.165 inch) mating pitch. The component comprises 16 positions arranged in two rows, utilizing male pin contacts. The housing is constructed from natural polyamide (PA66) with UL94 V-0 flammability rating and includes a four-wall shroud for polarity and alignment. Contact plating consists of gold on the mating interface and tin on the termination tail.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting facilitates compact PCB layout integration.
• Four-wall shrouded design ensures precise alignment and polarity during mating.
• Gold-plated contact surfaces provide reliable electrical conductivity and corrosion resistance.
• Polyamide insulation material meets UL94 V-0 safety standards.

Headers, Male Pins Applications

• General industrial equipment interconnections
• Telecommunications hardware assemblies
• Control board to cable wiring interfaces

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 16-position, two-row configuration. Confirm that the right-angle orientation aligns with the mechanical constraints of the target printed circuit board. Ensure compatibility with mating housings from the same Mini-Fit Jr. family to guarantee proper engagement and locking mechanism function.

Headers, Male Pins Selection Notes

Select this component when a robust, high-current capable header is needed for vertical space-constrained designs. The right-angle form factor allows for side-entry cabling, which may simplify harness routing compared to straight headers. Consider the 4.20mm pitch requirement against available board spacing and mating connector availability within the system architecture.

Headers, Male Pins Part Context

This connector belongs to the Mini-Fit Jr. product line, known for providing flexible interconnect solutions for wire-to-board and board-to-board configurations. The series supports various circuit counts and orientations, catering to high-density applications requiring durable connections in demanding environments such as industrial and telecom sectors.

Headers, Male Pins Replacement Considerations

Compatible mating housings include Molex part numbers such as 0039012160 and 0039012165. Verify that any substitute header maintains the identical 4.20mm pitch, 16-position count, and right-angle through-hole specification to ensure mechanical and electrical interchangeability.
