395-012-525-507

Edgeboard Connectors Overview

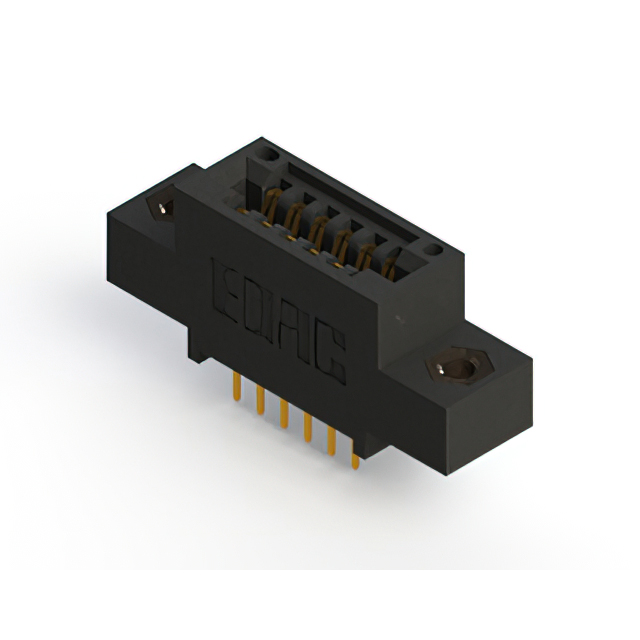

The EDAC Inc. 395-012-525-507 is a standard card edge connector designed for dual-edge board applications. It features 12 positions with a 0.100 inch (2.54mm) pitch and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The connector utilizes gold-plated contacts housed in a black thermoplastic polyester body, ensuring reliable signal transmission in electronic assemblies.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board retention
• Gold-plated contact surfaces for enhanced conductivity and corrosion resistance
• Thermoplastic polyester insulation providing thermal stability

Edgeboard Connectors Applications

• Electronic assembly interconnections
• Industrial control systems
• Communication equipment modules

Edgeboard Connectors Procurement Notes

Verify the specific part number against manufacturer documentation to confirm compatibility with dual-edge PCB designs. Ensure that the selected variant matches the required board thickness specifications. Cross-reference official datasheets for accurate dimensional data and environmental ratings before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge connection is required for a 12-position interface. Confirm that the target application supports the specified 0.100-inch pitch and 0.062-inch board thickness. Evaluate the need for gold plating and thermoplastic insulation based on operational temperature and durability requirements.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and termination options. The 395-012-525-507 specifically addresses low-pin-count dual-edge applications within this product family.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternatives. Generic equivalents may not match the precise dual-edge geometry or material specifications.
