395-020-558-658

Edgeboard Connectors Overview

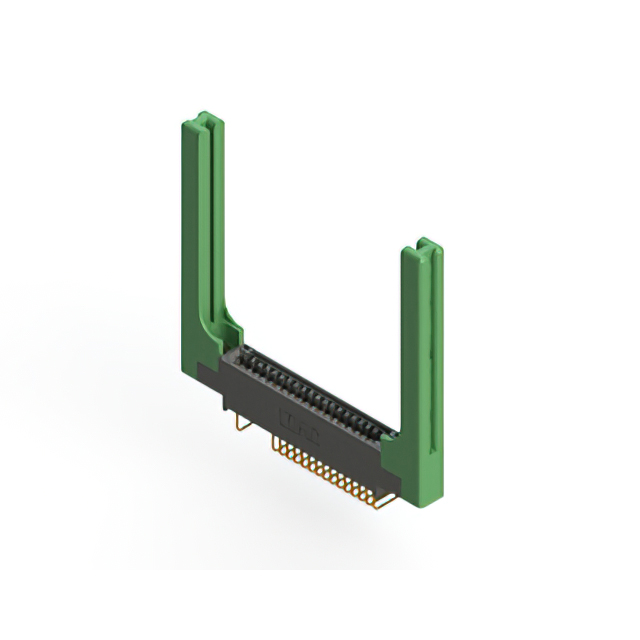

The EDAC Inc. 395-020-558-658 is a standard card edge connector featuring a 20-position configuration with a single row of contacts. It utilizes a 0.100 inch (2.54 mm) pitch and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The component employs gold-plated female contacts for reliable signal transmission and is housed in black thermoplastic polyester. Designed for right-angle surface-mount installation, it provides a secure mechanical connection for edge-board applications.

Edgeboard Connectors Feature Summary

• Single-row female contact configuration designed for vertical board insertion
• Gold-plated contacts ensure durable electrical performance and corrosion resistance
• Right-angle mounting orientation facilitates compact circuit board layout integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust edge-card interfaces
• Telecommunications equipment utilizing standard card edge modules
• Automotive electronics assemblies needing reliable signal interconnects

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating, housing color, and mounting style match project requirements. Confirm RoHS compliance status through official manufacturer documentation prior to procurement. Ensure PCB design specifications align with the 0.062-inch thickness tolerance and 0.100-inch pitch dimensions to guarantee proper mating engagement.

Edgeboard Connectors Selection Notes

Select this connector when a single-row, right-angle interface is required for 20-position signal routing. Verify that the target application supports the specified current rating and operates within the environmental limits defined by the thermoplastic polyester housing material. Ensure compatibility with existing board edge profiles and mating hardware constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series is characterized by its consistent 0.100-inch pitch and acceptance of 0.062-inch thick PCBs. This specific model represents a single-row variant within the broader family of right-angle connectors designed for general-purpose electronic interconnection tasks.

Edgeboard Connectors Replacement Considerations

Cross-reference part numbers within the EDAC 395 series for alternative position counts or row configurations. Verify mechanical footprint compatibility and pinout definitions before substituting with generic equivalents from other manufacturers.
