395-022-524-802

Edgeboard Connectors Overview

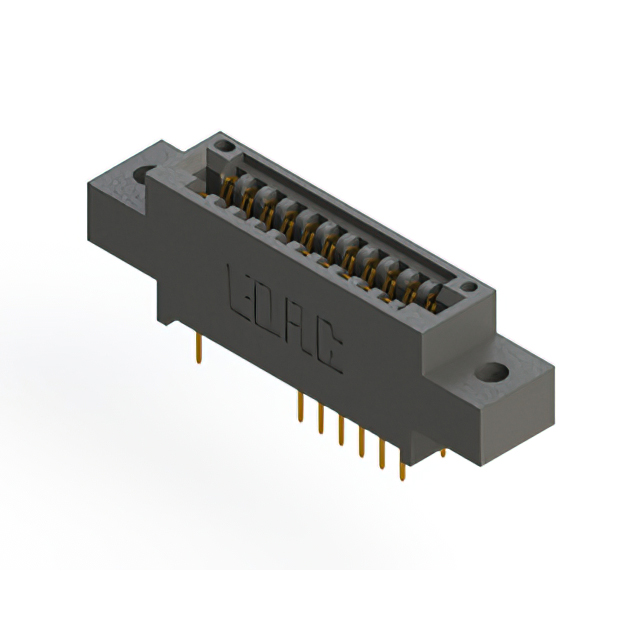

The EDAC Inc. 395-022-524-802 is a single-row card edge connector featuring 22 positions with a 0.100-inch (2.54mm) pitch. Designed for through-hole mounting, it utilizes female contacts made of copper alloy with gold plating. The unit accommodates board thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Single-row female contact configuration for standard card edge applications
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Through-hole termination method supports secure PCB integration

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment modules
• Automotive electronic circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, pitch, and termination style. Ensure compatibility with target PCB thickness specifications before procurement. Confirm RoHS compliance status matches project requirements. Cross-reference manufacturer datasheets for precise mechanical dimensions and mating force characteristics.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with 22 positions is required. Verify that the 0.100-inch pitch aligns with the design layout. Ensure the through-hole mounting style fits the assembly process. Check that the operating temperature range meets environmental demands. Confirm insulation material properties for chemical resistance needs.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and mounting styles. It is designed for general-purpose electronic interconnection tasks. The product line emphasizes durability and consistent electrical performance across industrial environments.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified equivalents. Generic cross-references may not match mechanical tolerances or contact plating specifications. Verify pinout compatibility and mounting hole patterns before considering alternative parts.
