395-032-520-508

Edgeboard Connectors Overview

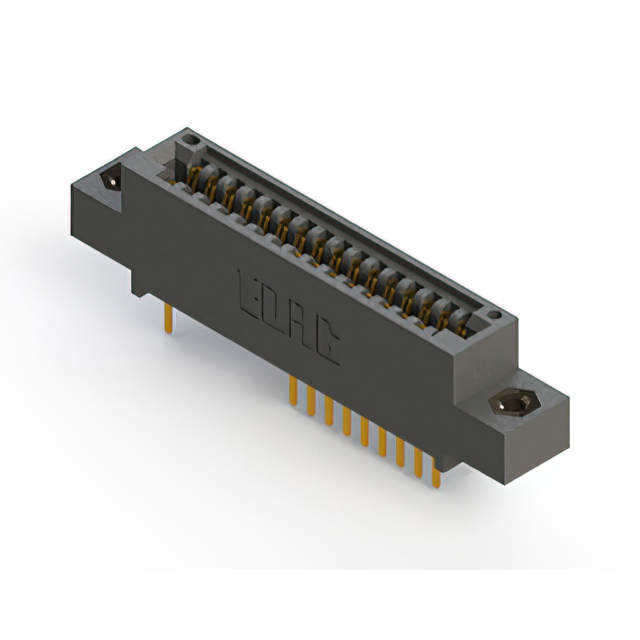

The EDAC Inc. part number 395-032-520-508 is a standard card edge connector from the 345/395 series. It features 32 positions in a dual female configuration with a 0.100-inch (2.54mm) pitch. The connector utilizes copper alloy contacts with a gold finish and is designed for vertical through-hole mounting. It accommodates card thicknesses of 1.57mm and includes guide sets for alignment.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for reliable signal transmission
• Vertical orientation facilitates standard board integration
• Gold-plated copper alloy contacts ensure corrosion resistance
• Integrated guide sets provide precise card alignment

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Automotive electronic modules
• Test and measurement instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to confirm exact termination style, insulation material, and mounting variations. Ensure compatibility with target PCB layout dimensions and card thickness specifications before finalizing procurement orders to prevent integration issues.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, vertical card edge interface is required. Confirm that the target printed circuit board supports through-hole assembly processes. Validate that the mating card thickness aligns with the connector's mechanical acceptance range to ensure proper electrical contact and mechanical stability during operation.

Edgeboard Connectors Part Context

This component belongs to the EDAC 345/395 series of standard card edge connectors. The series offers various position counts and row configurations. This specific model provides a compact dual-row solution suitable for applications needing moderate pin density in a vertical form factor.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other EDAC series models only if mechanical and electrical parameters match exactly.
