395-040-555-502

$8.30

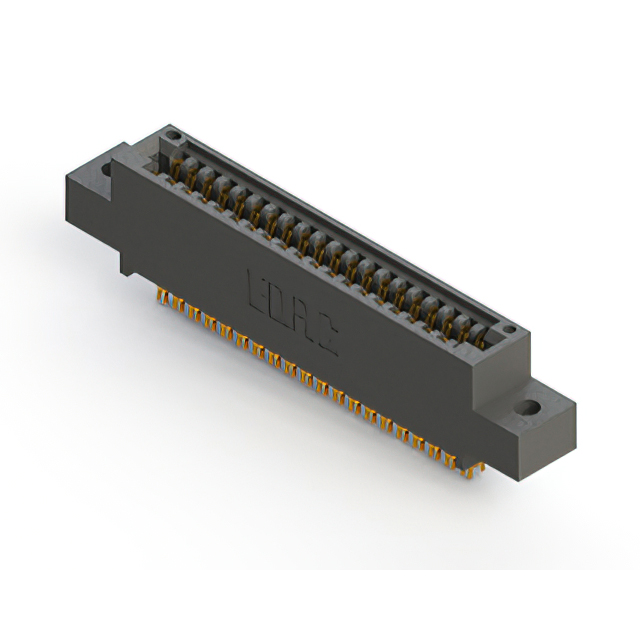

Description：CONN EDGE DUAL FMALE 40POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box

SKU:d2ae986b0adb Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

395-040-555-502 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 40POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 395-040-555-502

Description：CONN EDGE DUAL FMALE 40POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：20
Number of Positions：40
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.100" (2.54mm)
Read Out：Dual
Features：Card Extender
Mounting Type：Board Edge, Straddle Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 395-040-555-502

395-040-555-502

Edgeboard Connectors Overview

The EDAC Inc. 395-040-555-502 is a card edge connector designed for vertical panel mount applications. It features a dual female configuration with 40 positions and a 0.100-inch (2.54mm) pitch. The connector utilizes gold-plated contacts on a black insulator, supporting board thicknesses of 1.57mm. This component belongs to the standard card edge connector series, providing reliable signal transmission in electronic assemblies requiring robust mechanical stability.

Edgeboard Connectors Feature Summary

Dual female contact configuration for secure board insertion
Vertical mounting orientation for panel integration
Gold-plated terminals ensuring corrosion resistance

Edgeboard Connectors Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Test and measurement instrument interfaces

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version before ordering, as manufacturing revisions may occur. Confirm that the target printed circuit board thickness aligns with the connector's specified tolerance range. Ensure compatibility with the mating card edge profile to prevent mechanical stress during insertion. Cross-reference the RoHS compliance status with current regulatory requirements for your region.

Edgeboard Connectors Selection Notes

Select this model when a dual-row female connector is required for vertical panel mounting. The 0.100-inch pitch suits standard digital signal applications. Consider the gold plating for environments where oxidation resistance is critical. Evaluate the mechanical strength provided by the panel mount style against vibration requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and mounting styles. The 395-040-555-502 specifically addresses needs for 40-position dual-edge connections. It complements other variants in the lineup that differ in row count or termination method.
