Edgeboard Connectors Overview

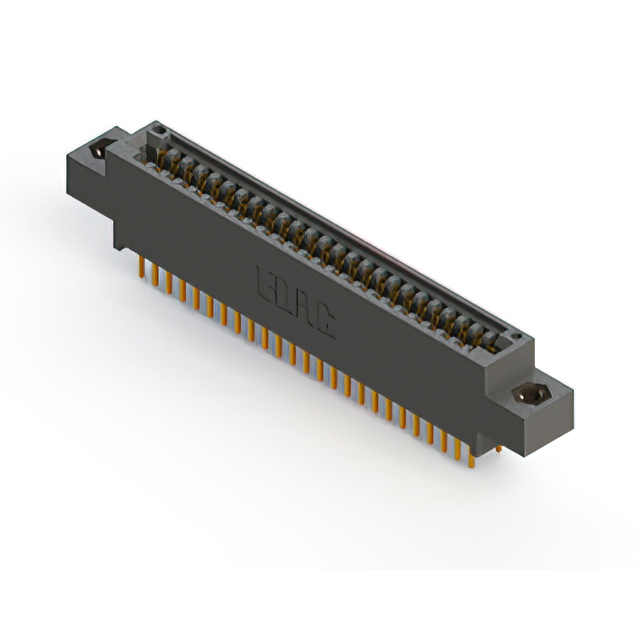

The EDAC Inc. 395-050-523-808 is a standard card edge connector featuring 50 positions with a 2.54 mm pitch. It utilizes a dual-row configuration and vertical panel mount style. The contacts are gold-plated copper alloy, rated for 3 A current. The housing is made of thermoplastic polyester, supporting PCB thicknesses of 1.57 mm. Operating temperatures range from -40 C to +105 C, with an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration for secure board insertion
• Vertical panel mounting design for structural stability
• Gold-plated copper alloy contacts ensuring reliable conductivity

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Medical device circuit boards
• Energy management hardware

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with target PCB thickness of 1.57 mm. Confirm RoHS compliance status through manufacturer certificates prior to integration into regulated assemblies.

Edgeboard Connectors Selection Notes

Select this component when a 50-position dual-edge interface is required. The 2.54 mm pitch aligns with standard card edge designs. Consider the vertical orientation and panel mount style for fixed installations. Verify thermal ratings against operational environments exceeding standard limits.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and termination options. It is designed for high-reliability applications in industrial and commercial sectors. The model number encodes specific row, position, and termination details.
