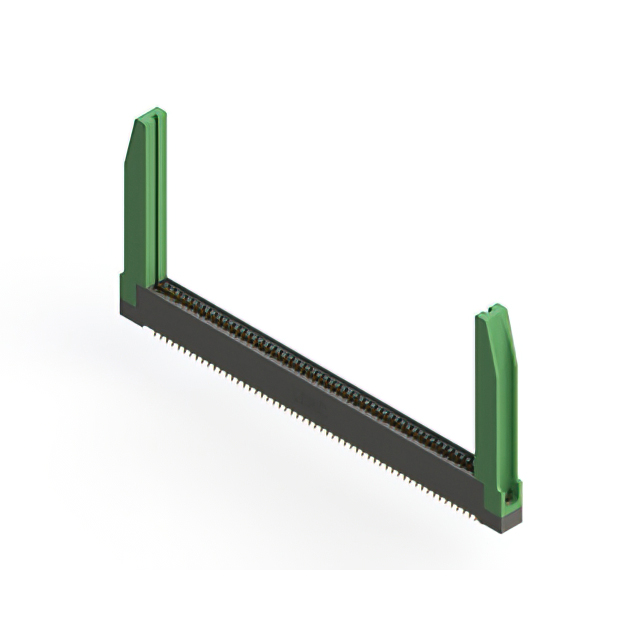

395-112-556-278

$15.46

Description：CONN EDGE DUAL FML 112POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box

SKU:2c0253aca224 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

395-112-556-278 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FML 112POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 395-112-556-278

Description：CONN EDGE DUAL FML 112POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：56
Number of Positions：112
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.100" (2.54mm)
Read Out：Dual
Features：Card Extender, Card Guides
Mounting Type：Board Edge, Straddle Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 395-112-556-278

395-112-556-278

Edgeboard Connectors Overview

The EDAC Inc. 395-112-556-278 is a card edge connector from the 395 series, designed for dual-edge board insertion. It features 112 positions with a 0.100-inch (2.54mm) pitch and accepts boards ranging from 0.054 to 0.070 inches thick. The connector utilizes female cantilever contacts made of copper alloy with gold plating. It employs a solder pin termination method for panel mounting and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

Dual-edge configuration supports two-sided card insertion for increased signal density.
Gold-plated cantilever contacts ensure reliable electrical connection and corrosion resistance.
Panel mount design provides secure mechanical stability in industrial applications.

Edgeboard Connectors Applications

Industrial control systems requiring robust interconnects
Telecommunications equipment interfaces
Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination style and contact plating specifications. Ensure compatibility with target PCB thickness limits before procurement. Confirm RoHS compliance status through current manufacturer certificates as regulatory requirements may evolve over time.

Edgeboard Connectors Selection Notes

Select this component when dual-edge connectivity is required for high-density signal routing. Evaluate the 0.100-inch pitch against available board space constraints. Consider the solder pin termination method for permanent panel installation versus other mounting options.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and configurations tailored for diverse electronic interconnection needs. The 395 series is recognized for its durability and consistent performance in demanding environments.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for direct equivalents. Verify dimensional compatibility and electrical ratings before considering alternative manufacturers' products.
