396-006-541-612

$6.73

Description：CONN EDGE SGL FMALE 6POS 0.125
Series：396
Mfr：EDAC Inc.
Package：Box

SKU:332537c12839 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

396-006-541-612 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 6POS 0.125. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 396-006-541-612

Description：CONN EDGE SGL FMALE 6POS 0.125
Series：396
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：6
Number of Positions：6
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.125" (3.18mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 396-006-541-612

396-006-541-612

Edgeboard Connectors Overview

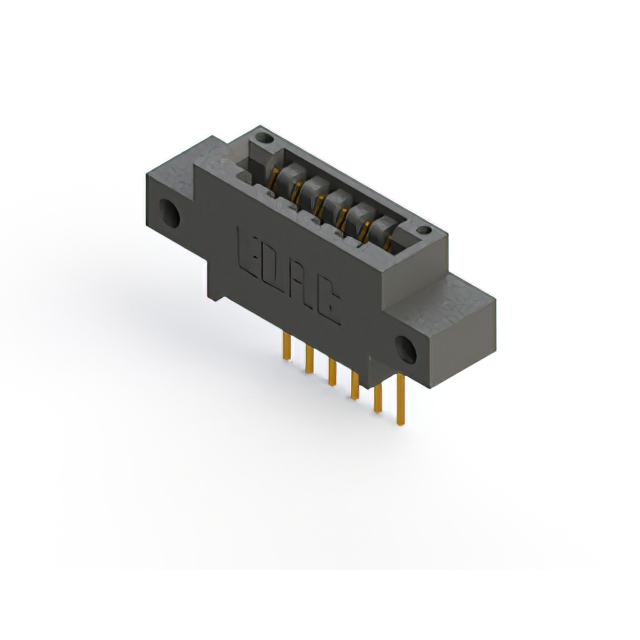

The EDAC Inc. 396-006-541-612 is a card edge connector designed for single-edge board insertion. It features six female contacts with a 0.125-inch (3.18mm) pitch. The connector utilizes gold-plated terminals and a black thermoplastic housing. It supports vertical through-hole mounting and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

Single-edge female contact configuration for standard card edge boards
Gold-plated terminal surfaces ensure reliable electrical conductivity
Vertical through-hole termination method for secure PCB integration

Edgeboard Connectors Applications

Electronic module interconnection systems
Industrial control panel interfaces
Communication equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the complete part number including all suffixes to ensure correct contact count, plating specification, and mounting style. Confirm that the target printed circuit board thickness aligns with the connector's acceptance range. Check for RoHS compliance status if environmental regulations apply to the final assembly. Ensure the supplier provides original manufacturer documentation.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, single-row interface is required for vertical board insertion. The 0.125-inch pitch accommodates standard trace spacing. Verify that the housing material meets thermal requirements for the operating environment. Consider the mechanical stability provided by the through-hole termination during vibration testing.

Edgeboard Connectors Part Context

This component belongs to the EDAC 396 series of standard card edge connectors. The series offers various pin counts and configurations for diverse electronic applications. The specific model represents a compact six-position variant suitable for space-constrained designs requiring robust signal transmission.
