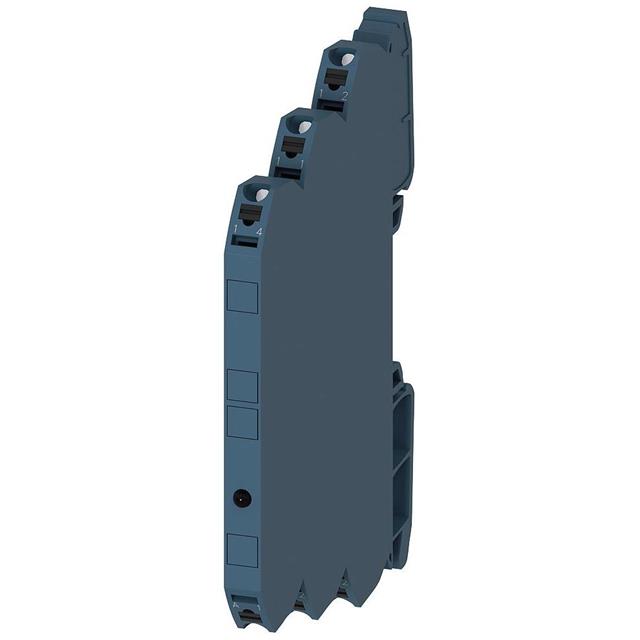

3RQ30382AF00

3RQ30382AF00 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Siemens. Its product description is RELAY GEN PURPOSE SPDT 3A 230V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for 3RQ30382AF00

• Description：RELAY GEN PURPOSE SPDT 3A 230V
• Series：SIRIUS 3RQ3
• Mfr：Siemens
• Package：Box
• Mounting Type：DIN Rail
• Coil Voltage：230VAC/DC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：3:00 AM
• Switching Voltage：250VAC - Max
• Load - Max Switching：750VA
• Coil Current：-
• Coil Type：Non Latching
• Features：Lighted Indicator
• Termination Style：Spring Terminal
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：-
• Must Release Voltage：-
• Operating Temperature：-25°C ~ 60°C
• Contact Material：Silver Tin Oxide (AgSnO)
• Approval Agency：CCC, CSA, EAC, UL
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：9 ms
• Release Time：19 ms

Power Relays, Over 2 Amps datasheet and documents for 3RQ30382AF00
