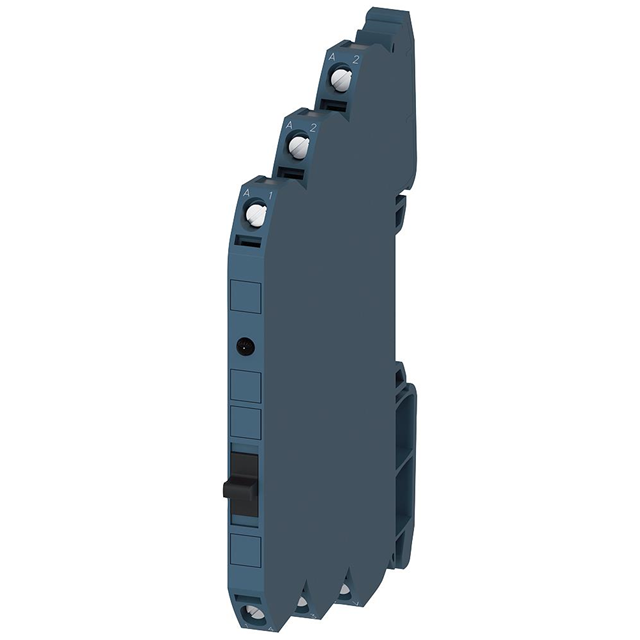

3RQ30651SM30

3RQ30651SM30 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Siemens. Its product description is RELAY GEN PURPOSE SPST 5A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for 3RQ30651SM30

• Description：RELAY GEN PURPOSE SPST 5A 24V
• Series：SIRIUS 3RQ3
• Mfr：Siemens
• Package：Box
• Mounting Type：DIN Rail
• Coil Voltage：24VDC
• Contact Form：SPST-NO (1 Form A)
• Contact Rating (Current)：5:00 AM
• Switching Voltage：30VDC - Max
• Load - Max Switching：150W
• Coil Current：-
• Coil Type：Non Latching
• Features：Lighted Indicator
• Termination Style：Screw Terminal
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：-
• Must Release Voltage：-
• Operating Temperature：-25°C ~ 60°C
• Contact Material：-
• Approval Agency：CCC, CSA, EAC, UL
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：0.2 ms
• Release Time：0.3 ms

Power Relays, Over 2 Amps datasheet and documents for 3RQ30651SM30
