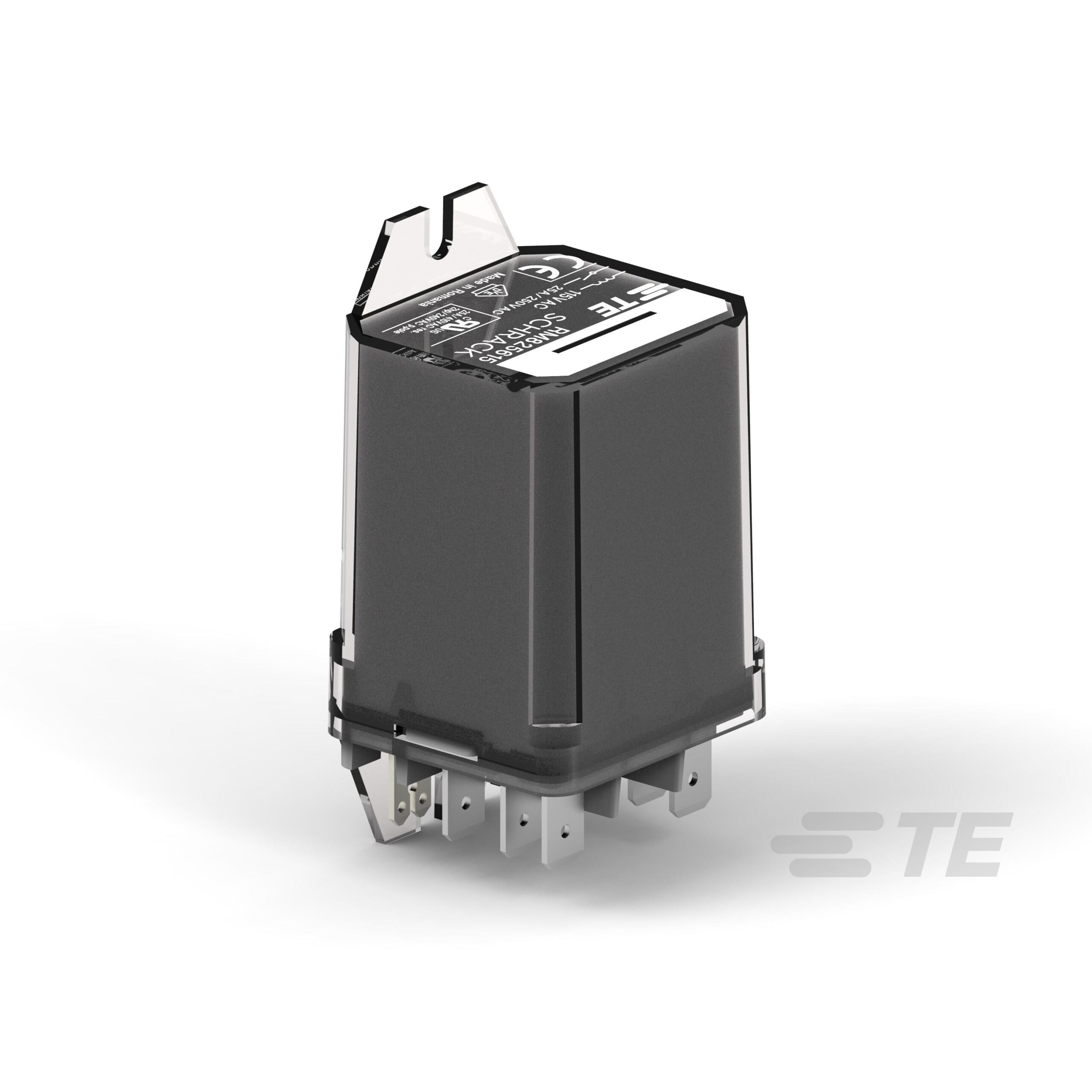

4-1415546-6

4-1415546-6 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE DPDT 25A 115V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for 4-1415546-6

• Description：RELAY GEN PURPOSE DPDT 25A 115V
• Series：RM, SCHRACK
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Bulk
• Mounting Type：Chassis Mount
• Coil Voltage：115VAC
• Contact Form：DPDT (2 Form C)
• Contact Rating (Current)：25 A
• Switching Voltage：400VAC - Max
• Load - Max Switching：6000VA
• Coil Current：62.2 mA
• Coil Type：Non Latching
• Features：Mechanical Indicator
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：92 VAC
• Must Release Voltage：34.5 VAC
• Operating Temperature：-40°C ~ 40°C
• Contact Material：Silver Nickel (AgNi)
• Approval Agency：cURus, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：15 ms
• Release Time：10 ms

Power Relays, Over 2 Amps datasheet and documents for 4-1415546-6
