40.52.7.024.0000

Power Relays, Over 2 Amps Overview

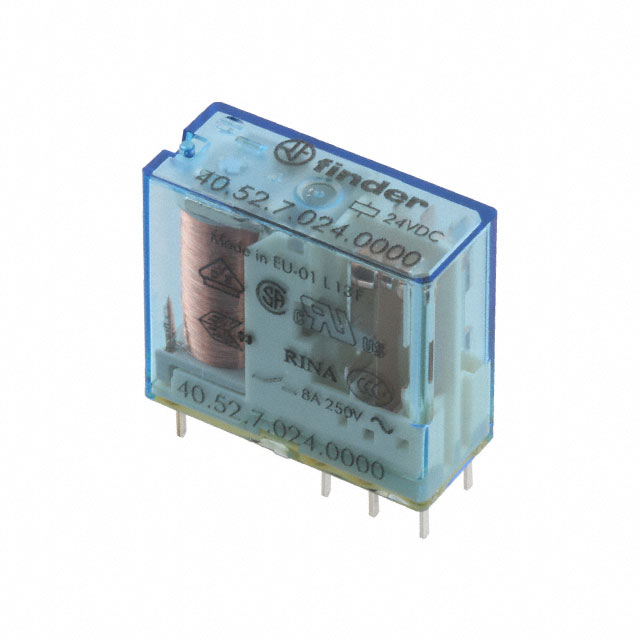

The Finder 40.52.7.024.0000 is a miniature general-purpose electromechanical relay from the 40 series, designed for PCB mounting or plug-in use. It features a double-pole changeover (DPDT) contact configuration with two Form C contacts. The coil operates at 24VDC with a power consumption of 650mW. Each contact set supports a rated current of 8A at 250VAC and 30VDC. The device provides high electrical isolation of 6kV between the coil and contacts, with 8mm creepage and clearance distances. It utilizes solder pin termination and is suitable for applications requiring compact switching solutions.

Power Relays, Over 2 Amps Feature Summary

• Double-pole changeover contact arrangement providing independent circuit control
• High isolation rating of 6kV between coil and contacts with 8mm safety distances
• Compact miniature form factor designed for PCB integration or socket mounting
• Standard DC coil operation compatible with low power control signals

Power Relays, Over 2 Amps Applications

• Industrial automation control panels
• HVAC system regulation circuits
• General purpose signal switching in electronic equipment
• Power distribution management modules

Power Relays, Over 2 Amps Procurement Notes

Verify that the specific part number matches the required DPDT configuration and 24VDC coil voltage. Confirm whether the application requires the standard 650mW coil version or if sensitive coil variants are needed. Ensure the mounting method aligns with either direct PCB soldering or the use of compatible Finder sockets. Check for any specific certification requirements such as VDE or cURus depending on the target market regulations.

Power Relays, Over 2 Amps Selection Notes

Select this model when space constraints require a miniature footprint while maintaining an 8A switching capacity. The 24VDC coil makes it suitable for standard digital logic interfaces. Consider the 6kV isolation capability for safety-critical applications separating low voltage control from higher voltage loads. Evaluate the need for plug-in versatility versus permanent PCB attachment to determine if socket accessories are necessary for maintenance.

Power Relays, Over 2 Amps Part Context

This component belongs to the Finder 40 series, which encompasses miniature PCB and plug-in relays. The series includes single-pole variants like the 40.31 and 40.51, alongside double-pole models such as the 40.52. The 40.52 designation specifically indicates a two-pole configuration with a 5mm pin pitch, distinguishing it from the narrower 3.5mm pitch options available in other series members.

Power Relays, Over 2 Amps Replacement Considerations

Direct substitutes within the same family include variations in coil voltage or contact material. Verify compatibility with existing Finder sockets if plug-in functionality is required. Cross-reference pin pitch dimensions to ensure mechanical fitment on existing PCB layouts.
