429-43-210-41-540000

Headers, Receptacles, Female Sockets Overview

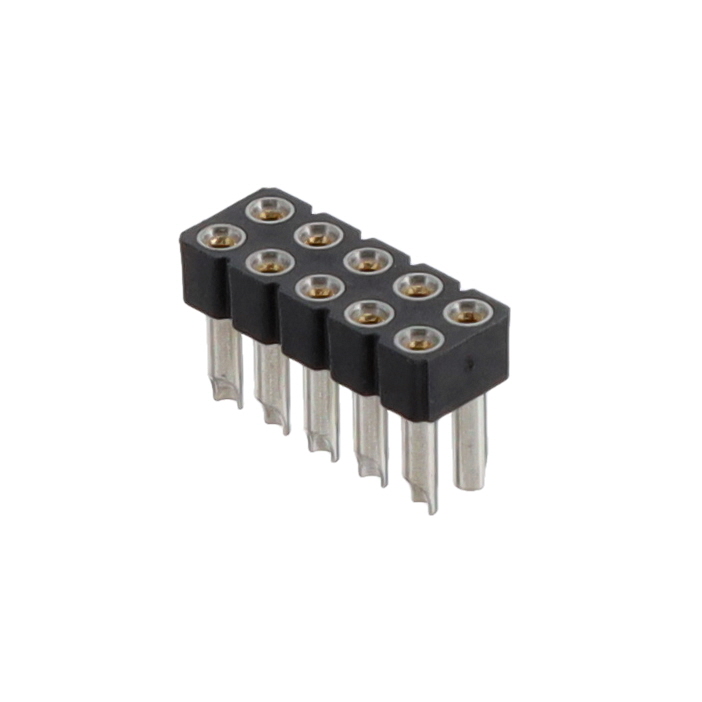

The Mill-Max 429-43-210-41-540000 is a standard socket header receptacle connector featuring 10 positions arranged in a double-row configuration. It utilizes a 0.100-inch (2.54mm) pitch and is designed for through-hole mounting on printed circuit boards. The contacts are gold-plated to ensure reliable signal transmission, and the unit accepts lead diameters ranging from 0.015 to 0.025 inches.

Headers, Receptacles, Female Sockets Feature Summary

• Double-row socket header design for board-to-board or wire-to-board interconnection
• Through-hole solder cup termination method for secure PCB attachment
• Gold contact plating provides corrosion resistance and stable electrical performance

Headers, Receptacles, Female Sockets Applications

• General electronic equipment interconnects
• Industrial control system wiring
• Test and measurement instrument connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific pin count and row configuration against the schematic requirements before ordering. Confirm that the through-hole mounting style matches the target PCB layout. Ensure the gold plating specification meets the environmental durability needs of the application. Cross-reference the manufacturer part number with authorized distributors to confirm current availability status.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, double-row socket is required for through-hole assembly. The 0.100-inch pitch is standard for many legacy and modern designs. Consider the mechanical stability provided by the solder cup termination compared to surface-mount alternatives. Evaluate the contact material compatibility with mating pins to prevent galvanic corrosion.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Mill-Max 429 series of standard socket headers. The series offers various position counts and row configurations to accommodate different density requirements. These connectors are widely used in the electronics industry for their reliability and standardized dimensions. The 41-540000 suffix typically denotes specific packaging or plating variations within the product line.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes may include other 10-position, double-row, 0.100-inch pitch sockets from manufacturers such as Samtec or Molex. Verify that the replacement part maintains the same through-hole mounting profile and contact plating specifications. Ensure the mechanical height and width dimensions fit within the existing enclosure constraints.
