435-10-206-00-160000

Headers, Male Pins Overview

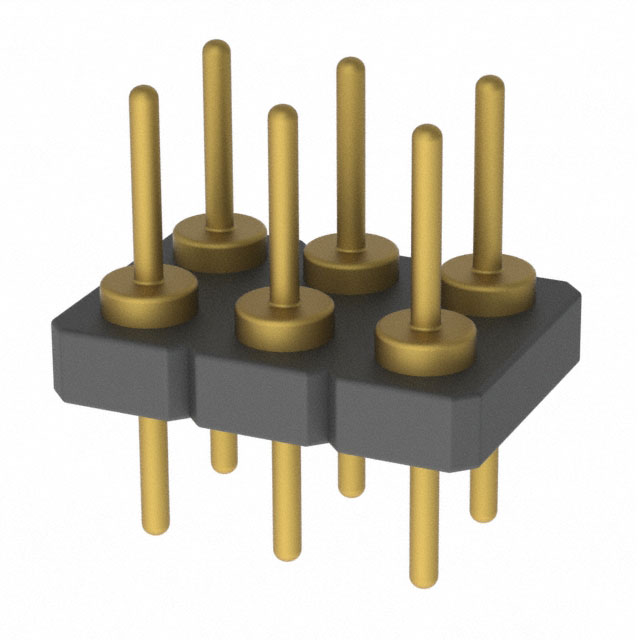

The Mill-Max 435-10-206-00-160000 is a standard pin header connector designed for board-to-board interconnection. It features six contacts arranged in two rows with a vertical orientation and a 2.54mm (0.100 inch) pitch. The component utilizes straight male pins intended for through-hole solder termination. Constructed as a rigid PCB header, it provides reliable electrical connectivity for standard electronic assemblies requiring fixed positional alignment between circuit boards.

Headers, Male Pins Feature Summary

• Six-contact configuration organized in a dual-row layout
• Vertical mounting design for direct board attachment
• Standard pin header construction for stable mechanical support

Headers, Male Pins Applications

• Board-to-board interconnect systems
• General purpose electronic assembly integration
• Rigid PCB stacking applications

Headers, Male Pins Procurement Notes

Verify the specific contact count and row configuration against schematic requirements. Confirm that the vertical orientation matches the enclosure constraints. Ensure the through-hole soldering process aligns with the manufacturing capabilities of the target printed circuit board to maintain proper mechanical retention and electrical continuity during operation.

Headers, Male Pins Selection Notes

Select this component when a fixed, non-flexible connection between two parallel circuit boards is required. The vertical form factor suits applications where space above the board is available but lateral clearance is limited. Consider the rigid nature of the header for environments subject to moderate mechanical stress without dynamic movement requirements.

Headers, Male Pins Part Context

This part belongs to the Mill-Max standard pin header family, which focuses on high-reliability precision-machined interconnect components. The series is recognized for providing consistent performance in general electronic applications. Mill-Max Manufacturing Corp. has established a reputation for producing durable connectors that meet strict dimensional tolerances for industrial and commercial electronics.

Headers, Male Pins Replacement Considerations

Substitutes must match the 6-position count, 2-row arrangement, and 2.54mm pitch. Verify that alternative headers maintain the same vertical height and through-hole termination style to ensure physical compatibility with existing board layouts and assembly processes.
