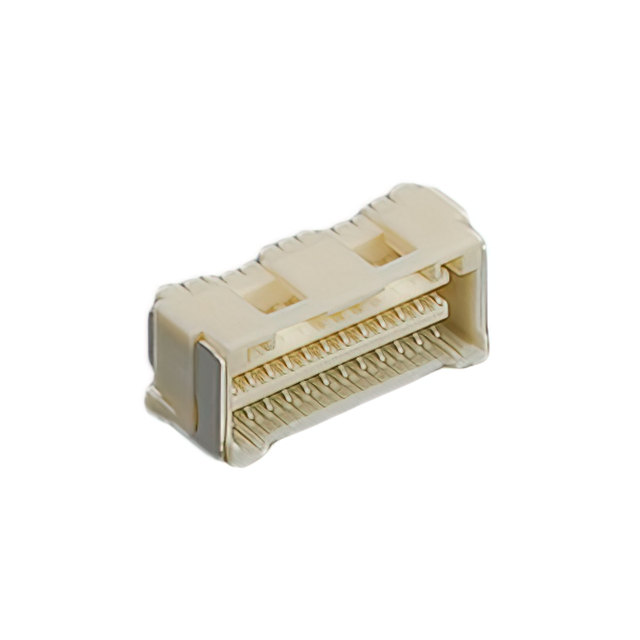

5031482471

5031482471 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Molex. Its product description is CLIK-MATE1.5 DRRA SMT SN HBP ETP. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 5031482471

• Description：CLIK-MATE1.5 DRRA SMT SN HBP ETP
• Series：CLIK-Mate 503148
• Mfr：Molex
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Receptacle
• Contact Type：Forked
• Style：Board to Cable/Wire
• Number of Positions：24
• Number of Positions Loaded：All
• Pitch - Mating：0.059" (1.50mm)
• Number of Rows：2
• Row Spacing - Mating：-
• Mounting Type：Surface Mount, Right Angle
• Termination：Solder
• Fastening Type：Latch Holder
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：39.4µin (1.00µm)
• Insulation Color：Black
• Insulation Height：0.362" (9.20mm)
• Contact Length - Post：-
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Pick and Place, Solder Retention
• Current Rating (Amps)：1A per Contact
• Voltage Rating：100V

Headers, Receptacles, Female Sockets datasheet and documents for 5031482471
