5041892070

Headers, Male Pins Overview

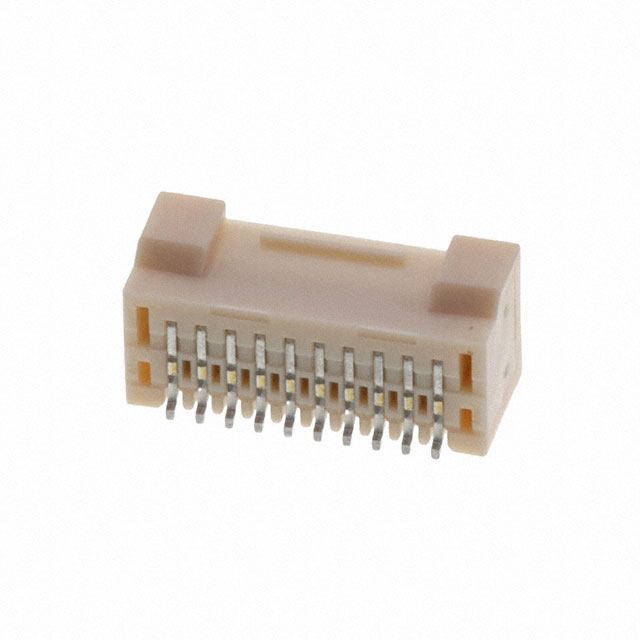

The Molex 5041892070 is a Micro-Lock series header connector designed for surface mount (SMD/SMT) applications. It features a right-angle configuration with 20 positions arranged in a dual-row layout. The component utilizes a 1.25 mm pitch and employs tin-plated brass male pins for reliable electrical contact. Rated for 50 V and 1.5 A, the housing is constructed from beige polyamide (PA). It operates within a temperature range of -25°C to +85°C and is supplied in cut tape or reel packaging.

Headers, Male Pins Feature Summary

• Micro-Lock shrouded design ensures secure mating and prevents pin damage
• Right-angle SMT termination facilitates compact PCB layout integration
• Polarization ribs prevent incorrect insertion orientation during assembly

Headers, Male Pins Applications

• Wire-to-board interconnections
• Compact consumer electronics assemblies
• Industrial control circuit boards

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Molex documentation to confirm exact pin count, row configuration, and termination style. Ensure compatibility with mating wire harnesses regarding current ratings and voltage limits. Confirm RoHS compliance status through the manufacturer's latest datasheet before finalizing procurement specifications.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle header is required for space-constrained designs. The 1.25 mm pitch supports high-density wiring needs while maintaining signal integrity. Consider the shrouded housing for environments requiring protection against accidental pin contact or misalignment during manual or automated assembly processes.

Headers, Male Pins Part Context

This part belongs to the Molex Micro-Lock 504189 series, which provides robust interconnect solutions for various commercial and industrial markets. The series emphasizes mechanical reliability and ease of use through integrated locking mechanisms and polarization features, catering to modern electronic manufacturing requirements.

Headers, Male Pins Replacement Considerations

Consult Molex official cross-reference guides for verified substitute part numbers. Generic equivalents may not match the precise 1.25 mm pitch or shrouding geometry required for proper fitment.

Headers, Male Pins FAQ

What is the contact material for this connector?

The contacts are made of brass with a tin plating finish.

Does this connector feature polarization?

Yes, it includes polarization ribs to guide correct insertion and prevent reverse mating.
