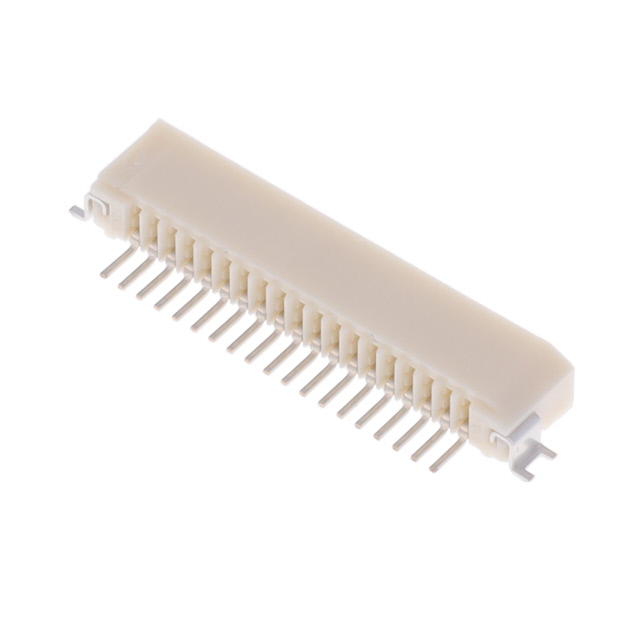

528521970

528521970 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FFC FPC BOTTOM 19POS 1MM RA. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 528521970

• Description：CONN FFC FPC BOTTOM 19POS 1MM RA
• Series：Easy-On 52852
• Mfr：Molex
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Bottom
• Number of Positions：19
• Pitch：0.039" (1.00mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.122" (3.10mm)
• Locking Feature：-
• Cable End Type：Straight
• Contact Material：Phosphor Bronze
• Contact Finish：Tin Bismuth
• Housing Material：Polyphenylene Sulfide (PPS)
• Actuator Material：-
• Features：Solder Retention
• Voltage Rating：50V
• Operating Temperature：-20°C ~ 80°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 528521970
