54201-S0809LF

Headers, Male Pins Overview

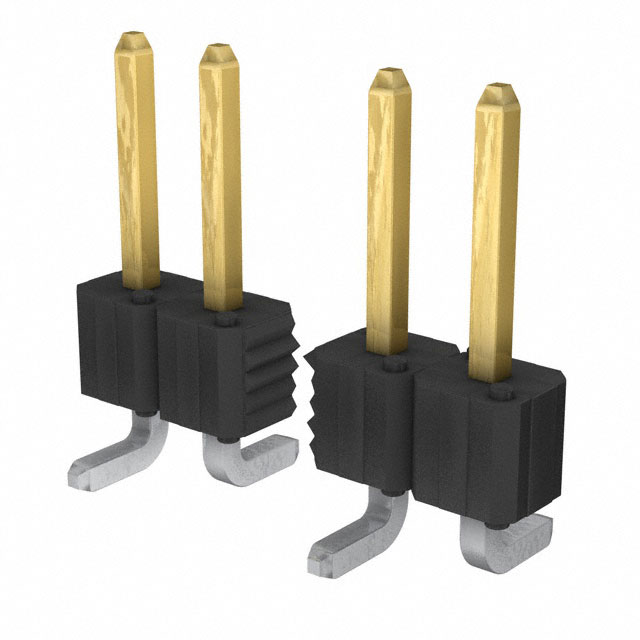

The Amphenol ICC (FCI) 54201-S0809LF is a BergStik board connector featuring 9 contacts in a single row. It utilizes a male configuration with straight surface mount termination and a 2.54 mm pitch. The component is lead-free compliant and designed for general-purpose applications.

Headers, Male Pins Feature Summary

• Single-row male header design for direct board-to-board interconnection
• Surface mount termination ensures secure PCB attachment
• Lead-free construction supports environmental compliance standards

Headers, Male Pins Applications

• General-purpose board-to-board connections
• Consumer electronics assemblies
• Industrial control modules

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Amphenol documentation to confirm contact plating, insulation material, and RoHS status. Ensure the selected variant matches the required current rating and operating temperature range for the target application environment.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row surface mount header is required. Confirm that the 2.54 mm pitch aligns with the mating connector footprint. Verify that the straight orientation fits within the mechanical constraints of the assembly enclosure.

Headers, Male Pins Part Context

This part belongs to the BergStik family of unshrouded headers from Amphenol FCI. The series provides reliable interconnect solutions for various electronic devices, emphasizing compact form factors and robust surface mount capabilities for high-volume manufacturing.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 9-position, 2.54 mm pitch, single-row surface mount headers from manufacturers such as Molex or Samtec. Ensure mating pin dimensions and retention force specifications are compatible before substitution.
