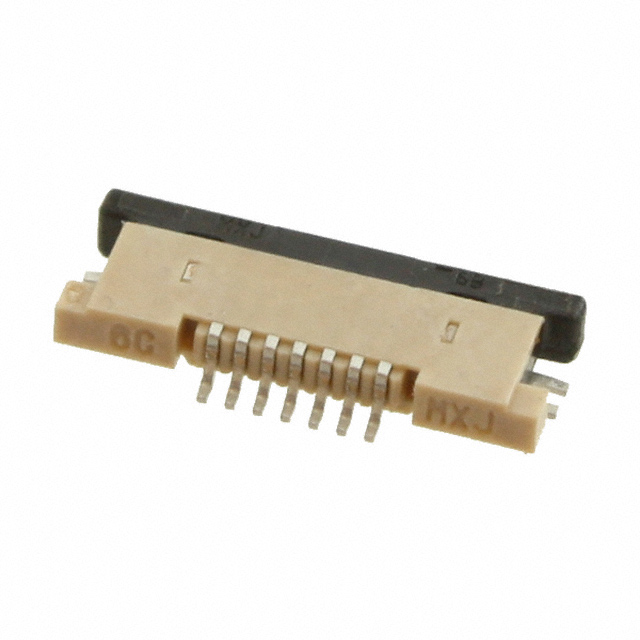

545480771 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FFC BOTTOM 7POS 0.5MM R/A. Review the specifications below when checking this part for your BOM.
FFC, FPC (Flat Flexible) Connector Assemblies specifications for 545480771
- Description：CONN FFC BOTTOM 7POS 0.5MM R/A
- Series：Easy-On 54548
- Mfr：Molex
- Package：Tape & Reel (TR),Cut Tape (CT)
- Flat Flex Type：FFC, FPC
- Mounting Type：Surface Mount, Right Angle
- Connector/Contact Type：Contacts, Bottom
- Number of Positions：7
- Pitch：0.020" (0.50mm)
- Termination：Solder
- FFC, FCB Thickness：0.30mm
- Height Above Board：0.047" (1.20mm)
- Locking Feature：Slide Lock
- Cable End Type：Straight, Tapered
- Contact Material：Phosphor Bronze
- Contact Finish：Gold
- Housing Material：Liquid Crystal Polymer (LCP)
- Actuator Material：Polyphenylene Sulfide (PPS)
- Features：Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating：50V
- Operating Temperature：-20°C ~ 85°C
- Material Flammability Rating：UL94 V-0
FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 545480771
