5977703607F

$1.04

Description：LED GREEN/RED CLEAR 1206 SMD
Series：597
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:5a78035d8911 Category: LED Indication - Discrete Brand: Dialight

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

5977703607F is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Dialight. Its product description is LED GREEN/RED CLEAR 1206 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for 5977703607F

Description：LED GREEN/RED CLEAR 1206 SMD
Series：597
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green, Red
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：45mcd Green, 55mcd Red
Lens Style：Rectangle with Flat Top
Lens Size：1.50mm x 1.60mm
Voltage - Forward (Vf) (Typ)：2V Green, 2V Red
Current - Test：20mA Green, 20mA Red
Viewing Angle：130°
Mounting Type：Surface Mount, Bottom Entry
Wavelength - Dominant：571nm Green, 631nm Red
Wavelength - Peak：574nm Green, 639nm Red
Features：-
Package / Case：1206 (3216 Metric)
Supplier Device Package：1206
Size / Dimension：3.20mm L x 1.60mm W
Height (Max)：1.10mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for 5977703607F

5977703607F

LED Indication - Discrete Overview

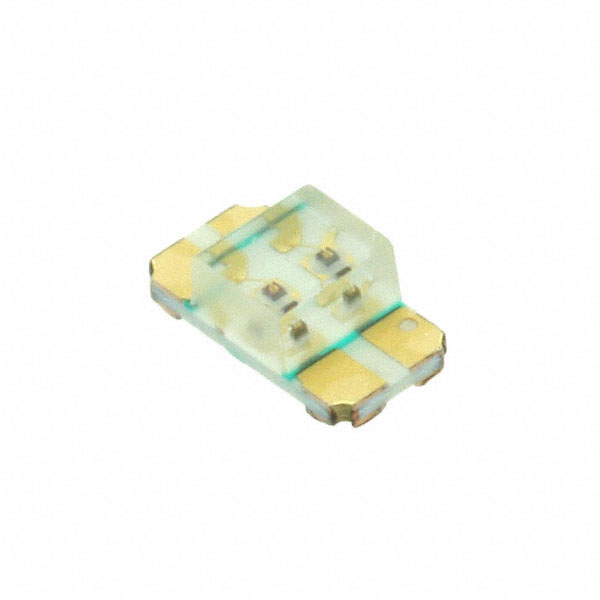

Dialight 5977703607F is a dual-color surface-mount LED indicator in a 1206 (3216 metric) package. It emits green light at a primary wavelength of 571nm and red light at 631nm. The typical forward voltage is 2V for both colors, with a test current of 20mA. Intensity ratings are 45mcd for green and 55mcd for red. The component features a clear, colorless lens with a rectangular shape and flat top, providing a 130-degree viewing angle. Dimensions are 3.20mm x 1.60mm x 1.10mm maximum height.

LED Indication - Discrete Feature Summary

Dual-color configuration enabling independent green and red emission within a single surface-mount device
Clear lens design provides high transparency for distinct color indication without diffusion effects
Standard 1206 footprint supports automated assembly on printed circuit boards

LED Indication - Discrete Applications

Electronic equipment status indicators
Power supply operational signaling
Board-level activity monitoring

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure correct packaging and lead times. Confirm RoHS compliance status prior to integration. Check manufacturer announcements for end-of-life notices or product change notifications that may affect long-term availability. Validate moisture sensitivity level requirements against your reflow profile capabilities.

LED Indication - Discrete Selection Notes

Choose this component when space-constrained designs require two distinct signal colors in a standard 1206 footprint. Ensure the driving circuit can handle the 20mA test current per color independently. Verify that the 130-degree viewing angle meets visibility requirements for the target application enclosure.

LED Indication - Discrete Part Context

The 597 series represents Dialight's line of surface-mount LEDs designed for general-purpose indication. This part utilizes standard semiconductor materials to produce specified wavelengths. It belongs to a family of components sharing similar mechanical dimensions but varying in color and intensity specifications.
