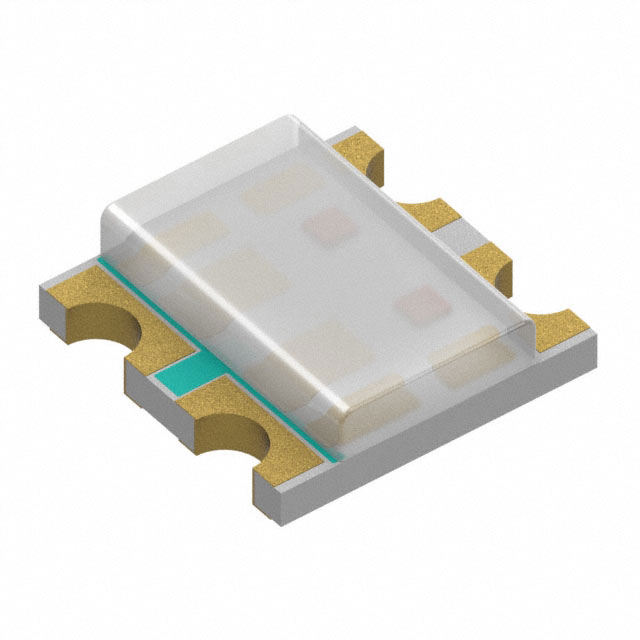

5977715607F

$0.61

Description：LED RGB 0606 SMD
Series：597
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:4abaa9bf07d8 Category: LED Indication - Discrete Brand: Dialight

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

5977715607F is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Dialight. Its product description is LED RGB 0606 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for 5977715607F

Description：LED RGB 0606 SMD
Series：597
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red, Green, Blue (RGB)
Configuration：Common Anode
Lens Color：-
Lens Transparency：-
Millicandela Rating：-
Lens Style：Rectangle with Flat Top
Lens Size：1.60mm x 1.15mm
Voltage - Forward (Vf) (Typ)：1.95V Red, 2.9V Green, 2.8V Blue
Current - Test：5mA Red, 5mA Green, 5mA Blue
Viewing Angle：130°
Mounting Type：Surface Mount
Wavelength - Dominant：-
Wavelength - Peak：632nm Red, 518nm Green, 468nm Blue
Features：-
Package / Case：0606 (1616 Metric)
Supplier Device Package：606
Size / Dimension：1.60mm L x 1.60mm W
Height (Max)：0.63mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for 5977715607F

5977715607F

LED Indication - Discrete Overview

The Dialight 5977715607F is a surface-mount multi-color LED component featuring an RGB configuration within a compact 0606 package. It operates with a forward current of 5mA and utilizes a colorless lens to ensure clear light transmission. The device is designed for SMD/SMT installation and includes moisture sensitivity characteristics, packaged in reels, cut tape, or MouserReel formats for automated assembly processes.

LED Indication - Discrete Feature Summary

Integrates Red, Green, and Blue elements into a single compact surface-mount package for full-color generation
Features a colorless lens design to maintain high transparency and accurate color representation
Supports standard SMD/SMT mounting techniques for efficient PCB integration

LED Indication - Discrete Applications

Status indication on electronic circuit boards requiring multi-state signaling
Compact indicator modules where space constraints limit component size
RGB lighting control systems utilizing surface-mount technology

LED Indication - Discrete Procurement Notes

Verify the specific RGB wavelength combinations and forward voltage requirements against your circuit design before procurement. Confirm that the 5mA operating current aligns with your driver capabilities. Ensure proper handling procedures are followed due to the moisture sensitivity classification associated with this surface-mount component type.

LED Indication - Discrete Selection Notes

Select this component when a small footprint is critical for RGB applications. The 0606 package offers significant space savings compared to larger LED packages. Consider the 5mA current requirement for power budgeting. Verify compatibility with automated pick-and-place equipment given the reel or cut-tape packaging options available.

LED Indication - Discrete Part Context

This part belongs to the Dialight multi-color LED series, specifically designed for surface-mount applications. It represents a solution for integrating multiple colors into a minimal area, suitable for modern electronics manufacturing trends favoring smaller form factors and higher component density on printed circuit boards.
