5GDL-F

LED Indication - Discrete Overview

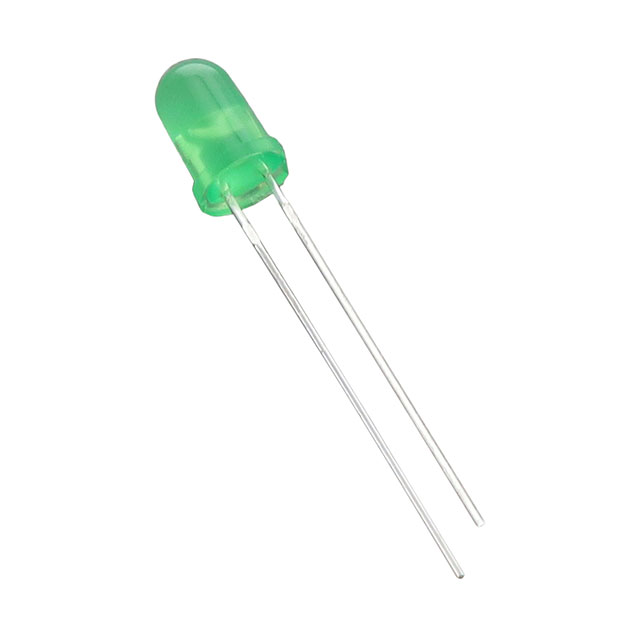

The 5GDL-F is a green light-emitting diode from Bivar Inc., designed for discrete LED indication applications. It features a radial leaded package with a 5mm diameter lens. The component operates at a forward voltage of 2.1V and emits green light with a luminous intensity of 4mcd. The beam angle is specified at 40 degrees, providing focused visual signaling suitable for panel-mounted indicator circuits.

LED Indication - Discrete Feature Summary

• Radial leaded configuration for through-hole mounting
• Green color emission with 40-degree beam angle
• Low forward voltage operation at 2.1V

LED Indication - Discrete Applications

• Panel-mounted status indicators
• Discrete LED signal modules
• IoT device visual feedback systems

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version to confirm electrical tolerances and thermal characteristics before integration. Ensure compatibility with standard PCB footprints for radial components. Check RoHS compliance documentation if environmental regulations apply to the final assembly. Confirm availability through authorized distributors to avoid counterfeit parts.

LED Indication - Discrete Selection Notes

Select this component when a low-profile green indicator with moderate intensity is required. The 2.1V forward voltage suits low-power control logic interfaces. Consider the 40-degree viewing angle for directional visibility needs. Evaluate mechanical stability requirements for the radial lead structure in vibration-prone environments.

LED Indication - Discrete Part Context

This part belongs to Bivar's discrete LED indication series, which provides various colors and package styles for industrial and networking applications. The 5GDL-F specifically addresses the need for reliable green signaling in compact electronic assemblies where space constraints limit larger indicator solutions.

LED Indication - Discrete Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching electrical parameters such as forward voltage, wavelength, and luminous intensity with alternative manufacturers' offerings.
