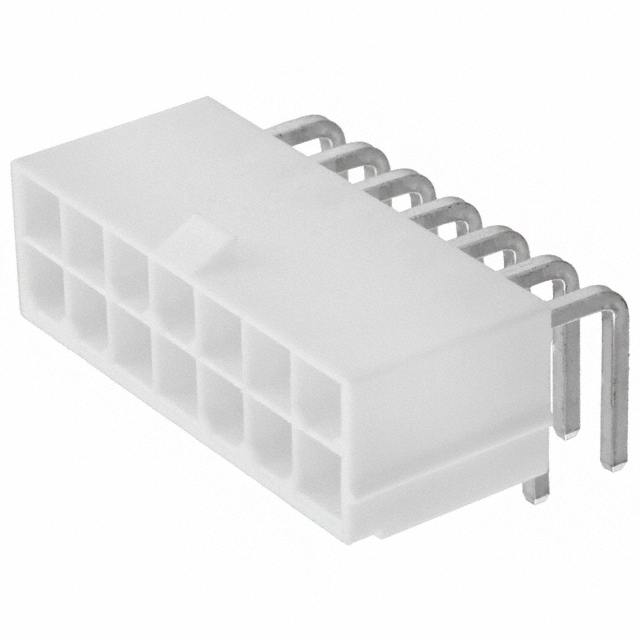

64901429522 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is CONN HEADER R/A 14POS 4.2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 64901429522

Description：CONN HEADER R/A 14POS 4.2MM
Series：WR-MPC4
Mfr：Würth Elektronik
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：14
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.142" (3.60mm)
Overall Contact Length：-
Insulation Height：0.394" (10.00mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA66), Nylon 6/6
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：White
Current Rating (Amps)：6A
Voltage Rating：600V

Headers, Male Pins datasheet and documents for 64901429522

64901429522

Headers, Male Pins Overview

The Würth Elektronik 64901429522 is a WR-MPC4 series wire-to-board header connector featuring a 4.20mm pitch and two rows of contacts. It provides 14 positions with male pins designed for through-hole right-angle mounting. The unit utilizes a white PA66 insulation body rated for 600V and 6A, operating within a -40°C to 105°C temperature range. Tin-plated copper alloy contacts ensure reliable conductivity, while the shrouded four-wall design offers mechanical protection.

Headers, Male Pins Feature Summary

Shrouded four-wall housing design for enhanced mechanical protection
Right-angle through-hole termination for space-efficient PCB layout
Locking pin slide mechanism ensures secure mating stability

Headers, Male Pins Applications

Industrial control system interconnections
Consumer electronics internal wiring
General-purpose board-to-wire connections

Headers, Male Pins Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm pin count, row configuration, and termination style. Ensure compatibility with mating cable assemblies and PCB footprint requirements. Check current RoHS certification status and environmental compliance records prior to final procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a right-angle, high-voltage header with robust shrouding is required. The 4.20mm pitch accommodates thicker wires compared to standard connectors. Consider the 6A current rating and 600V voltage limit for circuit safety margins. Verify that the right-angle orientation fits the enclosure constraints effectively.

Headers, Male Pins Part Context

This connector belongs to the WR-MPC4 product line from Würth Elektronik, which specializes in high-reliability interconnect solutions. The series is characterized by its durable construction and standardized spacing, making it suitable for demanding environments where secure electrical connections are critical for long-term operational integrity.
