68758-126HLF

Headers, Male Pins Overview

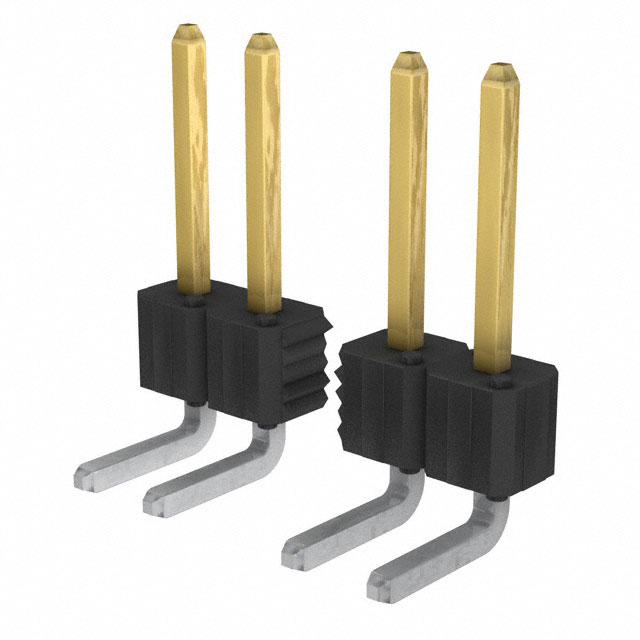

The Amphenol ICC (FCI) 68758-126HLF is a BergStik series board-to-board connector designed for through-hole mounting. It features an unshrouded right-angle header configuration with 26 positions and a 2.54 mm pitch. The component utilizes phosphor bronze contacts with tin plating, rated for 3 A current and 1.5 kV voltage. Operating within a temperature range of -65°C to +125°C, it meets UL 94 V-0 flammability standards and provides 5 GOhms insulation resistance.

Headers, Male Pins Feature Summary

• Right-angle unshrouded header design for compact vertical board connections
• Tin-plated phosphor bronze contacts ensuring reliable signal transmission
• Through-hole termination method for secure PCB integration

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring vertical interconnects
• Industrial instrumentation and control systems
• Consumer electronics hardware prototyping

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Amphenol documentation to confirm contact material and plating specifications. Ensure compatibility with target PCB hole sizes and mating receptacle dimensions before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for single-row signal routing. The 2.54 mm pitch offers standard spacing compatibility, while the unshrouded design minimizes footprint area compared to shrouded alternatives.

Headers, Male Pins Part Context

This part belongs to the BergStik family from Amphenol ICC (FCI), a widely used line of general-purpose headers. The manufacturer, now part of Amphenol Communications Solutions, specializes in high-reliability interconnect systems for data communication and industrial markets.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 26-position, 2.54 mm pitch right-angle headers from Amphenol or third-party manufacturers. Verify that replacement parts match the original tin plating thickness and current rating requirements.
