7011X5/7

LED Indication - Discrete Overview

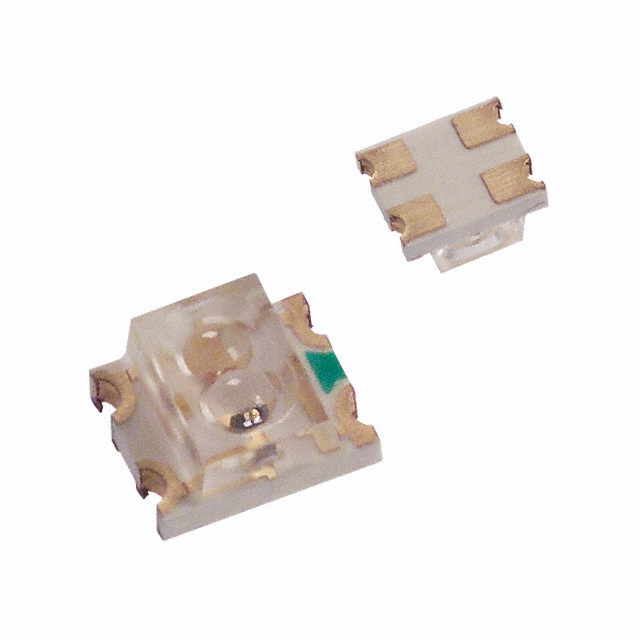

The VCC 7011X5/7 is a surface-mount bicolor LED from the 7011X series, featuring a compact 3.00mm x 2.50mm footprint with a maximum height of 1.50mm. It utilizes a clear, rectangular lens with a flat top to house independent red and green chips within a 4-SMD, no-lead package. The device operates at a typical forward voltage of 2V for both colors and supports a test current of 20mA per chip. It delivers peak wavelengths of 635nm (red) and 575nm (green), with luminous intensities of 220mcd and 155mcd respectively, providing a 100-degree viewing angle.

LED Indication - Discrete Feature Summary

• Bicolor configuration combining red and green LEDs in a single surface-mount package
• Clear rectangular lens design with a flat top for consistent light distribution
• Compatible with convection and vapor-phase reflow soldering processes
• Designed for high-density placement on printed circuit boards

LED Indication - Discrete Applications

• Status indication in industrial automation and control systems
• Visual signaling in home appliances and consumer electronics
• Indicator lights for medical devices and IoT hardware
• Panel status displays in people mover systems

LED Indication - Discrete Procurement Notes

Verify the specific color combination and binning requirements against the manufacturer's datasheet before ordering. Confirm that the 4-SMD footprint matches the target PCB layout. Ensure compliance with RoHS3 and REACH standards if required by the end product specifications. Check moisture sensitivity level (MSL 3) handling procedures during assembly.

LED Indication - Discrete Selection Notes

Select this component when space constraints require a dual-color indicator in a small SMD form factor. Consider the 100-degree viewing angle and specific intensity levels for visibility requirements. Evaluate the 2V forward voltage drop for power budget calculations. Ensure the application supports the standard 20mA test current rating for optimal brightness.

LED Indication - Discrete Part Context

This part belongs to the 7011X series of bicolor SMT LEDs manufactured by Visual Communications Company - VCC. The series offers various color combinations including Red/Green, Red/Yellow, and Green/Yellow. These components are designed for high-speed auto-insertion and feature gold-plated contacts for reliable solder joint inspection post-reflow.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers were not identified in the provided source material. Verify compatibility with existing footprints and electrical characteristics if sourcing alternatives from other manufacturers.
