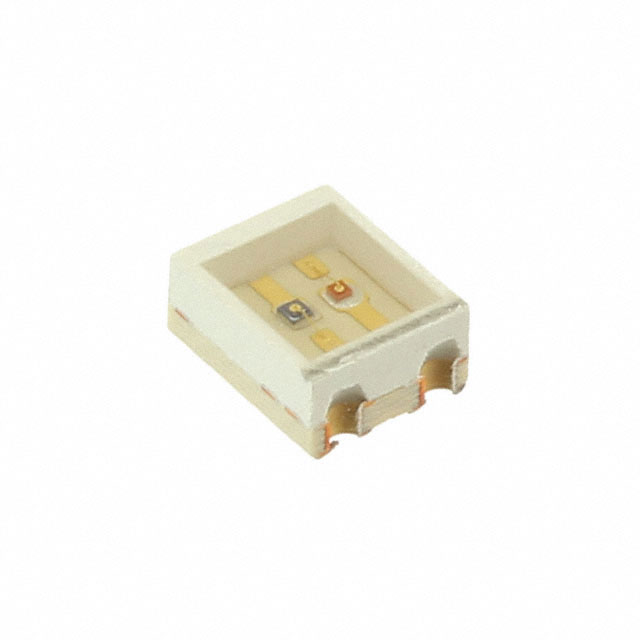

7016X1/5

$1.45

Description：LED GREEN/RED CLEAR SMD
Series：7016X
Mfr：Visual Communications Company - VCC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:4f2aefd163d4 Category: LED Indication - Discrete Brand: Visual Communications Company - VCC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED GREEN/RED CLEAR SMD
Series：7016X
Mfr：Visual Communications Company - VCC
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green, Red
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：14.5mcd Green, 12.5mcd Red
Lens Style：Rectangle with Flat Top
Lens Size：2.30mm x 2.10mm
Voltage - Forward (Vf) (Typ)：2.2V Green, 1.75V Red
Current - Test：20mA Green, 20mA Red
Viewing Angle：110°
Mounting Type：Surface Mount
Wavelength - Dominant：-
Wavelength - Peak：570nm Green, 660nm Red
Features：-
Package / Case：4-SMD, No Lead
Supplier Device Package：SMD
Size / Dimension：3.00mm L x 2.49mm W
Height (Max)：1.30mm
Grade：-
Qualification：-

Download product information

7016X1/5

Overview

The VCC 7016X1/5 is a dual-color surface-mount LED in a 4-SMD, no-lead package. It emits green light at 570 nm and red light at 660 nm. The device operates with a forward current of 20 mA for both colors. Typical forward voltages are 2.2 V for the green element and 1.75 V for the red element. Luminous intensity is rated at 14.5 mcd for green and 12.5 mcd for red. The lens is water clear with a rectangular shape. Dimensions are 3.00 mm x 2.49 mm x 1.30 mm max. Operating temperature range is -25°C to +85°C.

Feature Summary

Dual-color configuration providing independent green and red emission from a single compact component.
Water-clear rectangular lens design optimized for standard visibility requirements.
Surface-mount construction compatible with automated high-speed insertion processes.

Applications

Status indication on electronic circuit boards
Multi-state signaling in industrial control panels
Visual alerts in consumer electronics devices

Procurement Notes

Verify the specific suffix designation against the manufacturer's official documentation to confirm exact binning and optical characteristics. Ensure that the procurement source provides valid RoHS compliance certificates and moisture sensitivity level (MSL) data consistent with the datasheet. Confirm that the packaging format matches the required production line specifications for tape and reel or cut tape handling.

Selection Notes

Select this component when space constraints require a dual-color indicator within a 1208 metric footprint. Consider the distinct forward voltage differences between the green and red elements for proper driver circuit design. Evaluate the viewing angle and luminous intensity requirements against the application's visibility needs under ambient lighting conditions.

Part Context

This part belongs to the VCC 7016X series of surface-mount LEDs. The series utilizes Surface Mount Technology for reliable performance in automated assembly environments. These components are designed for high-density placement on printed circuit boards, offering consistent optoelectronic performance across the product line.
