7016X1

LED Indication - Discrete Overview

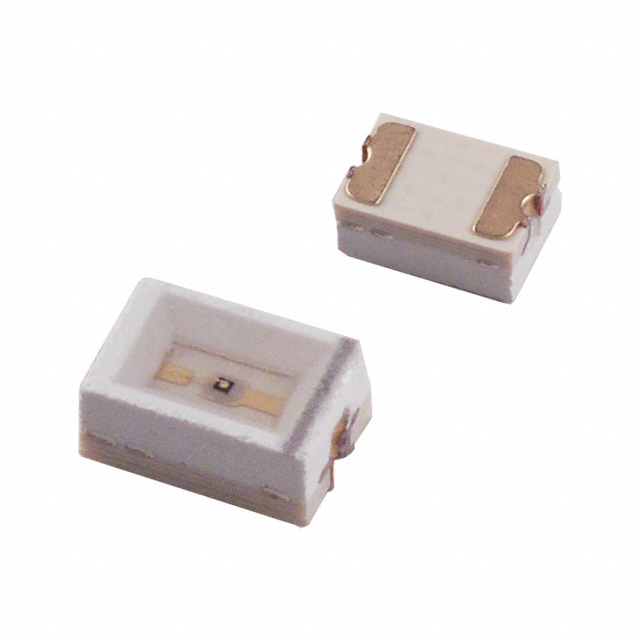

The VCC 7016X1 is a single-color red surface-mount LED in a 1208 (3020 metric) package. It emits at a wavelength of 650 nm with a water-clear rectangular lens. Key electrical parameters include a forward voltage of 2 V and a forward current of 20 mA, resulting in a power rating of 75 mW. The device provides a luminous intensity of 6.3 mcd and offers a viewing angle of 110 degrees. Physical dimensions are 3 mm in length, 2 mm in width, and 1.3 mm in height. It operates within a temperature range of -25°C to +80°C.

LED Indication - Discrete Feature Summary

• Surface mount technology compatible with convection and vapor-phase reflow processes for automated high-speed insertion.

LED Indication - Discrete Applications

• Indicator lights in electronic devices
• Panel status indicators
• General purpose illumination

LED Indication - Discrete Procurement Notes

Verify the specific suffix or variant required, as datasheets may list related part numbers like 7016X1-100. Confirm moisture sensitivity level (MSL) handling requirements prior to assembly. Ensure the ordering quantity matches the manufacturer's standard reel size of 2500 pieces if bulk procurement is intended. Cross-reference official documentation for any recent product change notices affecting specifications.

LED Indication - Discrete Selection Notes

Select this component when a compact 1208 footprint is required for high-density PCB placement. The 110-degree viewing angle suits applications needing broad visibility. Verify that the 6.3 mcd intensity meets visibility requirements for the specific enclosure design. Ensure the operating temperature range aligns with the environmental conditions of the final application.

LED Indication - Discrete Part Context

This component belongs to the 7016X series of SMT LEDs from Visual Communications Company. The series is characterized by consistent high brightness and stringent process controls for quality assurance. These LEDs are designed for reliable performance in various optoelectronic applications requiring standard red illumination in a small form factor.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers for this specific model were not found in the provided source material. Consult official distributor cross-reference tools for parametrically similar alternatives if direct substitution is necessary.
