Edgeboard Connectors Overview

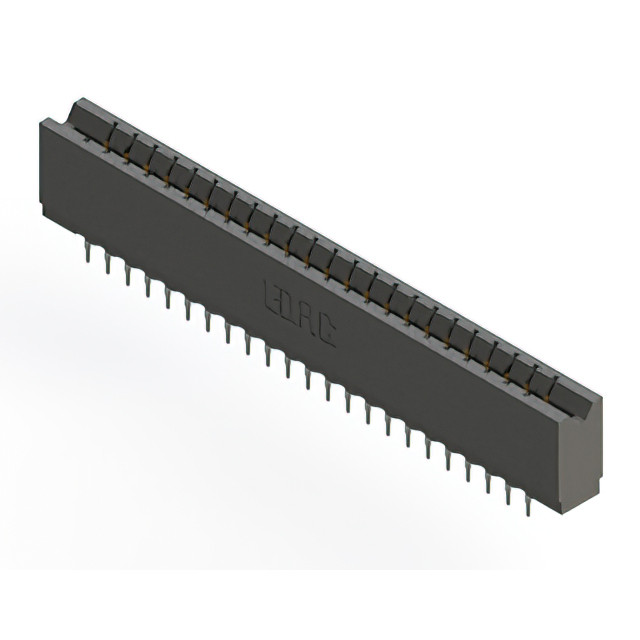

The EDAC Inc. 737-046-560-206 is a standard card edge connector designed for vertical panel mounting applications. It features a press-fit termination method and accommodates a board thickness of 1.57 mm. The component provides 46 positions arranged in two rows with a 3.96 mm pitch. Contacts are female type, gold-plated, and housed in a black thermoplastic polyester insulator rated UL 94V-0.

Edgeboard Connectors Feature Summary

• Vertical panel mount configuration with press-fit termination
• Dual-row female contact arrangement for high-density connections
• Gold-plated contacts ensuring reliable signal transmission
• High-profile polarized design for secure mating

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules
• Computing hardware expansion slots

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the official EDAC 737 Series Ordering Guide to confirm exact pin count, termination style, and plating specifications. Ensure compatibility with target PCB thickness and panel cutout dimensions before procurement. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this connector when vertical panel mounting and press-fit installation are required. The dual-row layout supports higher I/O density compared to single-row alternatives. Verify that the operating environment temperature range aligns with the component's thermal ratings. Confirm that the housing material meets necessary flammability standards for the intended application.

Edgeboard Connectors Part Context

This component belongs to the EDAC 737 series of standard card edge connectors. The series offers various configurations including solder, wire wrap, and press-fit terminations. The 737-046 variant specifically addresses needs for moderate pin counts with robust mechanical retention through its press-fit design.

Edgeboard Connectors Replacement Considerations

Compatible substitutes within the same series include 737-046-540-206 and 737-046-561-206. Verify that alternative part numbers match the required termination style and row configuration. Ensure dimensional compatibility with existing panel cutouts and PCB layouts.
