76341-402LF

Headers, Receptacles, Female Sockets Overview

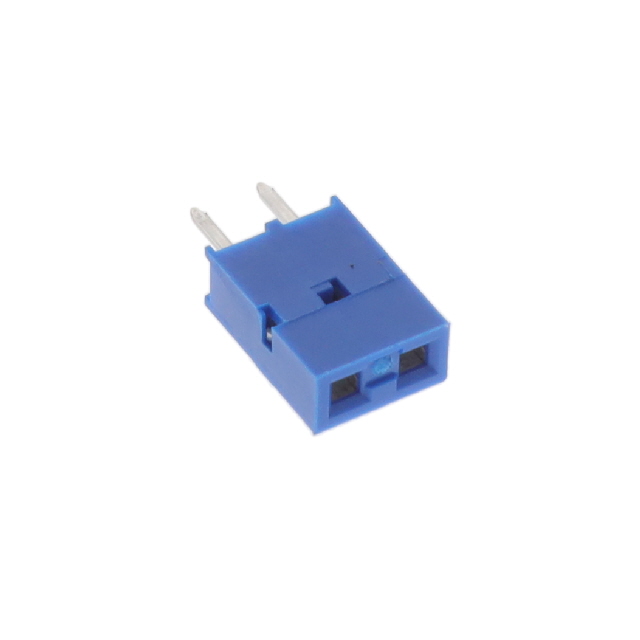

The Amphenol ICC (FCI) 76341-402LF is a Dubox series board-to-board receptacle connector. It features 2 positions with a 0.100 inch (2.54 mm) pitch. The contacts are female sockets with tin plating, rated for 22-30 AWG wire. Termination is achieved via vertical through-hole soldering on the PCB. The housing is blue thermoplastic with UL94 V-0 flammability rating.

Headers, Receptacles, Female Sockets Feature Summary

• Vertical through-hole mounting style for direct PCB integration
• Female socket contact configuration compatible with pin headers
• Tin-plated phosphor bronze contacts for reliable conductivity
• Blue thermoplastic insulation housing with UL94 V-0 rating

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnection in industrial equipment
• Signal routing in automotive electronic control units
• Component interfacing in telecommunications infrastructure
• General-purpose circuit board stacking in consumer electronics

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix and plating type against official datasheets to ensure compatibility with mating connectors. Confirm RoHS compliance status and moisture sensitivity level requirements prior to assembly. Cross-reference the manufacturer part number with authorized distributors to avoid counterfeit components. Check for any recent product change notices that may affect material specifications or packaging.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, two-position vertical receptacle is required for 2.54mm pitch systems. Ensure the mating header matches the female socket geometry and current ratings. Consider the operating temperature range and environmental exposure during design. Validate mechanical stack height constraints against the connector's physical dimensions.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Dubox family of rectangular connectors designed for versatile board-to-board applications. The series offers various position counts and termination styles to support diverse electronic assembly needs. Amphenol ICC manufactures these components to meet rigorous quality standards for global industrial markets.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible mating headers include Amphenol part numbers such as 77311-402LF. Verify dimensional tolerances and contact force characteristics before substituting with generic equivalents. Ensure alternative parts maintain the same pitch and mounting orientation.
