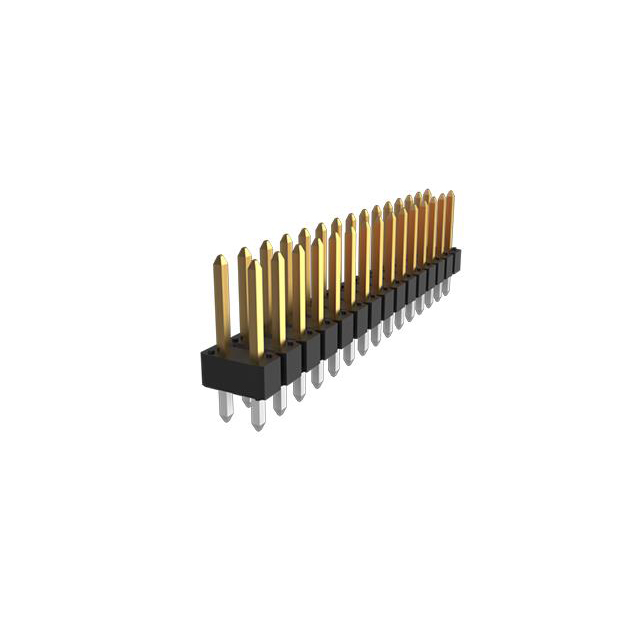

77313-1AL-10LF

77313-1AL-10LF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is HDR STR DR.100 DP. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 77313-1AL-10LF

• Description：HDR STR DR.100 DP
• Series：BERGSTIK®
• Mfr：Amphenol ICC (FCI)
• Package：Bag
• Connector Type：Header, Breakaway
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：10
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Unshrouded
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.232" (5.90mm)
• Contact Length - Post：0.063" (1.60mm)
• Overall Contact Length：0.396" (10.05mm)
• Insulation Height：0.100" (2.54mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold or Gold, GXT™
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Contact Finish - Post：Tin
• Contact Material：Phosphor Bronze
• Insulation Material：Thermoplastic
• Features：-
• Operating Temperature：-65°C ~ 130°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：3A per Contact
• Voltage Rating：-

Headers, Male Pins datasheet and documents for 77313-1AL-10LF
