7S-12.000MAHE-T

Crystals Overview

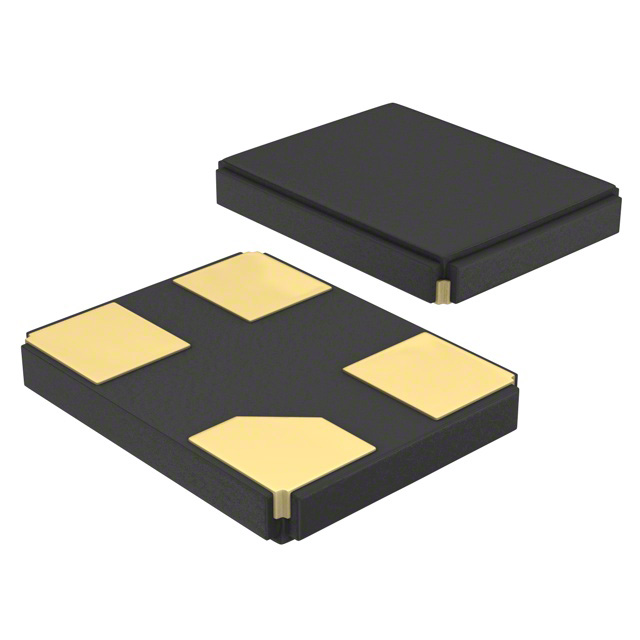

The TXC Corporation 7S-12.000MAHE-T is a surface-mount quartz crystal resonator operating at a fundamental frequency of 12.000 MHz. It features a 4-SMD, no-lead package with dimensions of 2.50 mm in length and 2.00 mm in width, and a maximum height of 0.85 mm. The component provides a load capacitance of 12 pF and maintains a frequency stability of ±30 ppm across the specified temperature range. Designed for base mode operation, it supports an industrial operating temperature range from -40°C to +85°C. The unit weighs approximately 16 mg and complies with RoHS3 standards.

Crystals Feature Summary

• Seam seal construction for environmental protection
• Surface mount design for automated assembly
• Industrial grade temperature capability

Crystals Applications

• Microcontroller clock sources
• Communication interface timing
• Consumer electronics control circuits

Crystals Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compliance with updated material specifications or packaging formats. Confirm that the requested quantity aligns with standard reel sizes, as partial reels may not be available. Cross-reference the date code to ensure the component meets current production lifecycle status requirements for long-term supply chain stability.

Crystals Selection Notes

Select this component when a compact 2.5x2.0 mm footprint is required for space-constrained designs. Ensure the application circuit matches the 12 pF load capacitance specification to achieve accurate frequency performance. Verify that the ±30 ppm stability meets the system timing requirements within the -40°C to +85°C operational environment.

Crystals Part Context

This part belongs to the 7S series of quartz crystals from TXC Corporation. The series is characterized by small form factors suitable for modern portable devices. The 7S designation indicates specific dimensional constraints and mounting characteristics distinct from other TXC crystal families.

Crystals Replacement Considerations

Direct substitutes include the 7M-12.000MAAE-T, though it has a narrower temperature range. Other potential replacements are 7V-12.000MAHE-T and 7A-12.000MAHE-T, provided they match the 2.5x2.0 mm package and electrical parameters.
