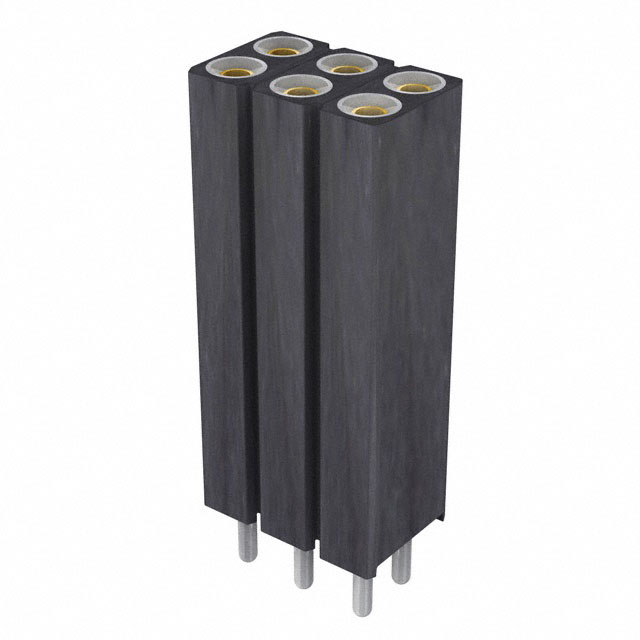

803-87-006-10-249101

$1.00

Description：CONN SOCKET 6POS 0.1 GOLD PCB
Series：803
Mfr：Preci-Dip
Package：Bulk

SKU:e9557c5d880f Category: Headers, Receptacles, Female Sockets Brand: Preci-Dip

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

803-87-006-10-249101 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Preci-Dip. Its product description is CONN SOCKET 6POS 0.1 GOLD PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 803-87-006-10-249101

Description：CONN SOCKET 6POS 0.1 GOLD PCB
Series：803
Mfr：Preci-Dip
Package：Bulk
Connector Type：Socket
Contact Type：Female Socket
Style：Board to Board
Number of Positions：6
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Insulation Color：Black
Insulation Height：0.735" (18.67mm)
Contact Length - Post：0.096" (2.43mm)
Operating Temperature：-55°C ~ 125°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for 803-87-006-10-249101

803-87-006-10-249101

Headers, Receptacles, Female Sockets Overview

The Preci-Dip 803-87-006-10-249101 is a 6-position rectangular connector socket designed for board-to-board applications. It features a 0.100-inch (2.54mm) pitch and utilizes through-hole termination for secure PCB mounting. The assembly includes gold-plated contacts to ensure reliable signal transmission, housed within a black insulator rated UL94 V-0 for fire safety. This component supports a wide operating temperature range from -55°C to +125°C and employs a push-pull locking mechanism for stable mating connections.
