807-013-559-102

Edgeboard Connectors Overview

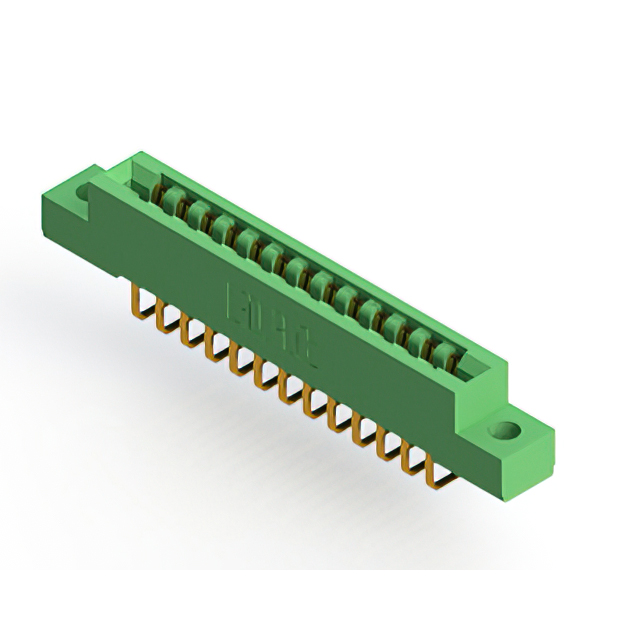

The EDAC Inc. 807-013-559-102 is a standard card edge connector receptacle from the 807 High Temp Series. It features 13 positions with a 3.96 mm (0.156 inch) pitch and supports a maximum board thickness of 1.57 mm. Designed for right-angle through-hole mounting, it utilizes gold-plated copper alloy contacts rated for 5 A current. The housing is constructed from diallyl phthalate (DAP), enabling reliable operation in high-temperature environments.

Edgeboard Connectors Feature Summary

• High temperature resistance suitable for demanding thermal conditions
• Right-angle configuration for efficient panel space utilization
• Gold-plated contacts ensure stable electrical conductivity
• Single row female design for daughter board insertion

Edgeboard Connectors Applications

• Industrial control systems requiring thermal stability
• Automotive electronics modules
• Communication equipment interfaces
• Medical device circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official EDAC documentation to confirm contact tail geometry and plating specifications. Ensure compatibility with the target PCB thickness of 1.57 mm before integration. Confirm that the right-angle orientation aligns with the mechanical assembly requirements. Cross-reference the DAP insulator material properties with environmental operating standards.

Edgeboard Connectors Selection Notes

Select this component when a single-row, right-angle connection is required for high-temperature applications. The 3.96 mm pitch accommodates standard daughter board designs. Verify that the 5 A current rating meets the circuit load requirements. Consider the through-hole termination method for robust mechanical fixation during vibration.

Edgeboard Connectors Part Context

This part belongs to the EDAC 807 series, which specializes in high-temperature card edge connectors. The series offers various position counts and mounting styles while maintaining consistent 3.96 mm spacing. The 807 series is engineered for durability in harsh environments where standard connectors may fail due to heat degradation.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference guide for direct substitutes. Verify that any alternative maintains the 3.96 mm pitch and right-angle form factor. Ensure the replacement matches the 13-position count and single-row configuration.
