807-020-542-207

Edgeboard Connectors Overview

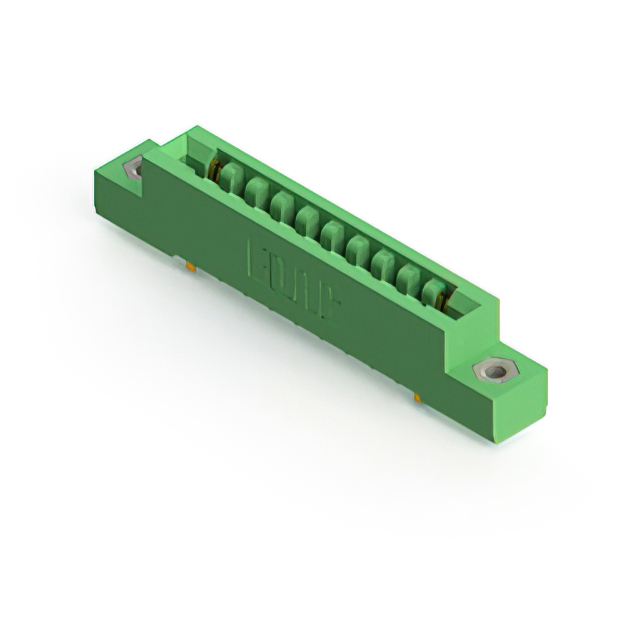

The EDAC 807-020-542-207 is a high-temperature standard card edge receptacle featuring 20 positions in a dual-row configuration. It utilizes a 3.96 mm pitch and supports a board thickness of 1.57 mm. The connector employs gold-plated copper alloy contacts with a 5 A current rating and 5 GOhms insulation resistance. Designed for panel mount installation at a vertical angle, it operates within a temperature range of -40 C to +125 C. The housing is constructed from Diallyl Phthalate (DAP) material.

Edgeboard Connectors Feature Summary

• High-temperature capability suitable for demanding thermal environments
• Dual-edge contact design for reliable daughter board connection
• Gold-plated copper alloy contacts ensuring corrosion resistance

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Harsh environment industrial systems

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility. Check RoHS compliance details directly from the datasheet. Confirm availability status as supply conditions may vary by region. Ensure the selected variant matches the required mounting style and contact code specifications for your application.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount card edge solution is required. Verify that the target PCB thickness aligns with the specified 1.57 mm tolerance. Consider the high-temperature rating if the operating environment exceeds standard limits. Ensure the dual-row configuration fits the available space on the host panel.

Edgeboard Connectors Part Context

This component belongs to the EDAC 807 Series, which specializes in high-temperature card edge connectors. The series is designed for robust performance in specialized sectors such as medical and agricultural technologies. It provides reliable interconnection solutions where standard connectors may fail due to thermal stress or environmental factors.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC catalog for direct substitutes within the 807 series. Verify pin count, pitch, and mounting orientation before replacing. Cross-reference with other manufacturers only if mechanical and electrical parameters match exactly.
