807-066-460-204

Edgeboard Connectors Overview

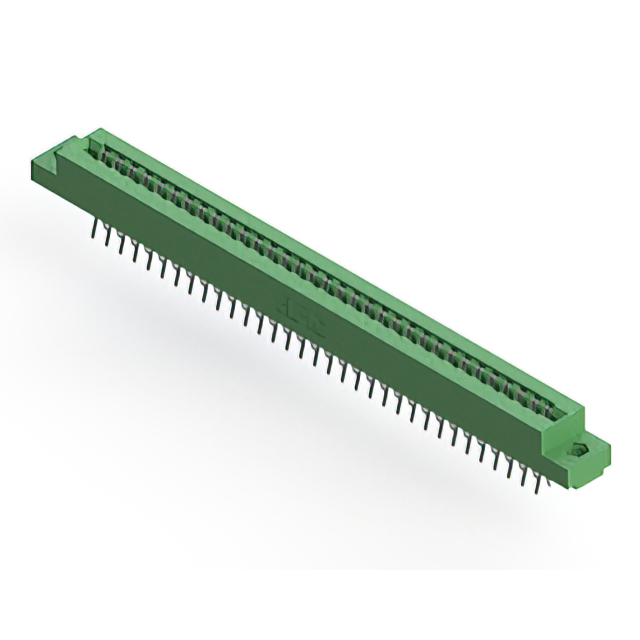

The EDAC 807-066-460-204 is a standard card edge connector receptacle featuring 66 positions with a 3.96 mm pitch. It supports a board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts for reliable signal transmission. The housing is constructed from Diallyl Phthalate (DAP), providing durability in high-temperature environments up to +125°C. Designed for panel mount installation, this dual-row connector offers a right-angle configuration with solder pin termination. It operates within a temperature range of -40°C to +125°C and maintains an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• High-temperature resistant DAP housing construction
• Gold-plated copper alloy contact system
• Dual-edge female connection interface
• Right-angle panel mount installation style

Edgeboard Connectors Applications

• Industrial control systems requiring thermal stability
• Medical interconnect solutions
• Agricultural technology equipment
• Harsh environment electronic assemblies

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to ensure correct contact plating and housing material specifications. Confirm that the 3.96 mm pitch and 1.57 mm board thickness compatibility matches your PCB design requirements. Check current availability status as supply may be limited or restricted in certain regions. Ensure the right-angle orientation aligns with your mechanical enclosure constraints before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a robust, high-temperature card edge solution is required for panel-mounted applications. The 66-position count and dual-row layout suit dense interconnect needs. Verify that the 3.96 mm pitch accommodates your card edge design. Consider the DAP housing material for superior thermal performance compared to standard thermoplastics. Ensure the right-angle form factor fits within the available spatial constraints of the target assembly.

Edgeboard Connectors Part Context

This part belongs to the EDAC 807 series, which specializes in high-temperature card edge connectors. The series is designed for demanding applications where standard connectors may fail due to heat. The 807 series typically features DAP housings and gold contacts to ensure longevity and reliability in industrial, medical, and agricultural sectors. This specific model provides a dual-row configuration for higher density connections.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 807 series variants such as 807-066-559-207 if different termination styles are needed. Verify that substitute parts maintain the same 3.96 mm pitch and 1.57 mm board thickness. Ensure replacement components offer equivalent high-temperature ratings and DAP housing materials for consistent performance in harsh environments.
