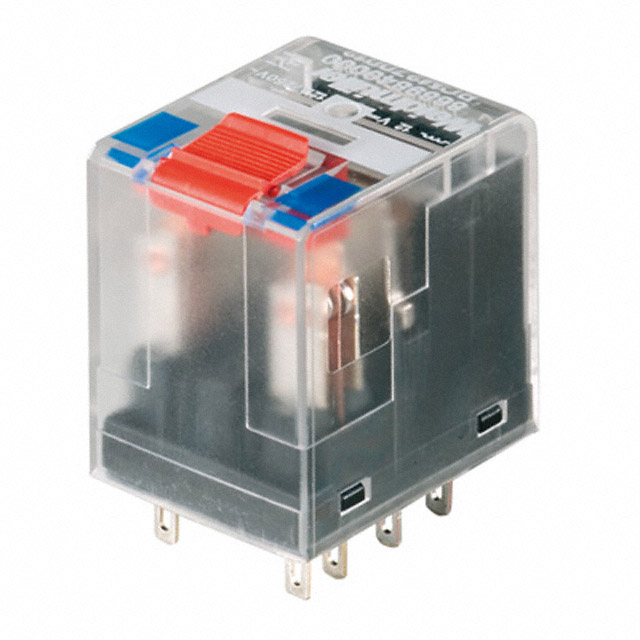

8074700000

8074700000 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Weidmüller. Its product description is RELAY GEN PURPOSE 4PDT 6A 110V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for 8074700000

• Description：RELAY GEN PURPOSE 4PDT 6A 110V
• Series：RCM
• Mfr：Weidmüller
• Package：Bulk
• Mounting Type：Socketable
• Coil Voltage：110VDC
• Contact Form：4PDT (4 Form C)
• Contact Rating (Current)：6:00 AM
• Switching Voltage：240VAC - Max
• Load - Max Switching：1440VA
• Coil Current：6.8 mA
• Coil Type：Non Latching
• Features：Test Button
• Termination Style：Plug In, Quick Connect - 0.110" (2.8mm)
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：82.5 VDC
• Must Release Voltage：11 VDC
• Operating Temperature：-40°C ~ 70°C
• Contact Material：Silver Nickel (AgNi)
• Approval Agency：CSA, cURus, UKCA, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：15 ms
• Release Time：10 ms

Power Relays, Over 2 Amps datasheet and documents for 8074700000
