833-062-524-803

Edgeboard Connectors Overview

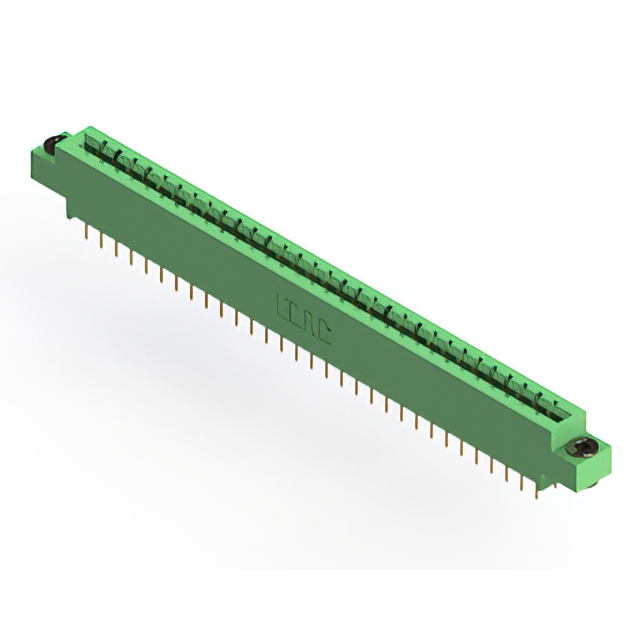

The EDAC Inc. 833-062-524-803 is a standard card edge connector from the 833 series, designed for dual female termination. It features 62 positions with a 0.156-inch (3.96 mm) pitch. The connector supports a board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts for reliable signal transmission. Rated for 3 A current, it employs a diallyl phthalate (DAP) housing and solder pin end-type termination.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card edge mating
• Gold-plated copper alloy contacts ensure corrosion resistance and conductivity
• Diallyl phthalate (DAP) housing provides robust insulation properties

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm exact pin count, plating, and termination style. Confirm RoHS compliance status directly with the manufacturer or authorized distributor, as regulatory details may vary by production batch. Ensure the selected variant matches the required PCB thickness and panel mounting orientation for your specific design integration.

Edgeboard Connectors Selection Notes

Select this component when a high-density 62-position interface is required with a 0.156-inch pitch. The vertical panel mount style suits applications needing direct board insertion. Consider the 3 A current rating and DAP material compatibility with your environmental conditions. Verify that the solder pin termination method aligns with your assembly process capabilities.

Edgeboard Connectors Part Context

This part belongs to the EDAC 833 series of standard card edge connectors. The series offers various position counts and mounting styles tailored for industrial and specialized sectors. The 833-062-524-803 specifically addresses needs for dual-sided female connections in compact panel-mounted configurations.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 833 series variants such as 833-062-524-203 or 833-062-524-212 if different termination or plating options are needed. Verify mechanical dimensions and electrical ratings before substituting to ensure functional equivalence.
