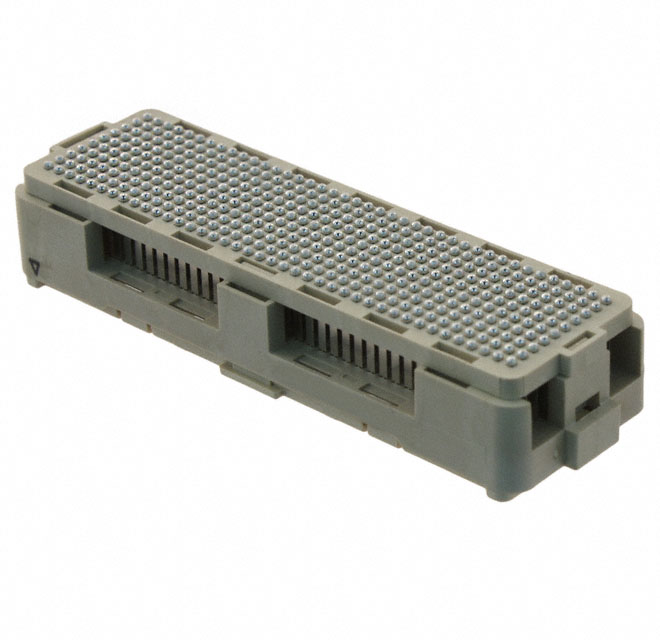

Arrays, Edge Type, Mezzanine (Board To Board) 84520-102LF product image

84520-102LF

$31.68

Description：CONN ARRAY PLUG 400POS SMD GOLD
Series：MEG-Array®, MezzSelect™
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT)

SKU:e1d48f7b2302 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Amphenol ICC (FCI)

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

84520-102LF is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN ARRAY PLUG 400POS SMD GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 84520-102LF

Description：CONN ARRAY PLUG 400POS SMD GOLD
Series：MEG-Array®, MezzSelect™
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT)
Connector Type：Array, Male Pins
Number of Positions：400
Pitch：0.050" (1.27mm)
Number of Rows：10
Mounting Type：Surface Mount
Features：-
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Mated Stacking Heights：10mm, 12mm, 14mm
Height Above Board：0.368" (9.35mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 84520-102LF

84520-102LF
